Product Details
| Brand Name | CRT | Place of Origin | China | |
| Model Number | CRT-310 |
Product Description

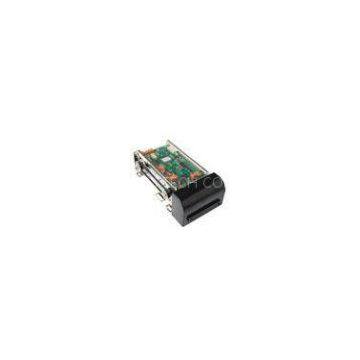

ISO14443 RFID Motorized Card Reader With RS232 Interface , Magnetic Stripe Card Reader
Quick Detail:
CRT-310 series are motorized card reader equipments for RFID/IC /magnetic stripe card operation, with the function of the card entry from front/rear insertion/ejection.
Description:
Motorized card reader CRT-310 with below main features:
★?RFID/IC card read/write, magnetic stripe card read only
★?Insert and eject the card from both front and rear side
★?RS232 interface
★?DC12V ±5%
★?DC24V/DC12V converter plate
★?Power-fail protection
★?Deal with abnormal cards function
★?Electric shutter and mechanical shutter for option
★?PSAM board for option
★?Support IAP Download
Applications:
Kiosk terminals
Payment systems
Access control terminals
Specifications:
|
Card standard |
Magnetic Card: ISO7810 ID-1,ISO7811 |
|
Life time |
Magnetic head:500,000? passes IC card contact:300,000 passes Motor:300,000 passes |
|
Communication |
RS232 interface |
|
Power supply |
DC12V±5% |
|
Current consumption |
Static Current: 110mA Peak Current: <1.5A |
|
Temperature/Humidity |
Operation:0~50℃/0 ~ 90%?RH(Non condensing) |
|
Dimension (LxWxH) |
148x86x48mm |
|
Weight |
Approx 410g |
Competitive Advantage:
RFID/IC card read/write, magnetic stripe card read only.
Automatic insertion/ejection of the cards
Insert and eject card from both front and rear
Electric and mechanical shutter for option
Power-fail protection
PSAM board and LED for option
Abnormal card processing
Support IAP download
