Home > Products > RFID Card Dispenser > Contact / Contactless RFID Card Dispenser With RS-232C For Access Control System

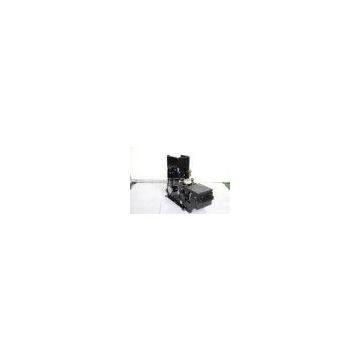

Contact / Contactless RFID Card Dispenser With RS-232C For Access Control System
- 0 Kilogram / Kilograms per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
Account Opening System RS-232C RFID / RF Card Dispenser , Magnetic Stripe Card Dispenser
-
Parking Magnetic Card Dispenser , IC / RFid Card Dispenser Machine ISO
-
3 In 1 Smart Card Dispenser With Pre-Card Dispensing , RF IC Magnetic Card Dispenser
-
3 In 1 Parking Kiosk Motorized Card Reader For RFID Card , IC Card Reader Writer
-
RS232 Motorized Card Reader / IC Card Reader Equipment For Self-Service Device
-
EMV Smart Motorized Card Reader / Kiosk Magnetic Card Reader DC 12V
Product Details
| Brand Name | Creator | Place of Origin | China | |
| Model Number | CRT-571-(001)ER-BSJ |
Product Description
Certification:CE/EMV
Contact / Contactless RFID Card Dispenser With RS-232C For Access Control System
Quick Detail:
CRT-571 Card Issue Machine(IC/RFID card read & write, cards pre-empty detection, removable stacker with locking function, with EMV certified )
Description:
IC/RFID Card read & write
With cards pre-empty detection
Flexible extended function of reading & writing RFID card
Removable stacker with locking function
Most compact design
Applications:
Parking management system
Automatic card vending machine
Hotel self-service access control system
Card initialization batch
Telecom/Electricity self-assist account opening system
Technical Specifications:
|
Card Standard |
IC card: ISO7816 RFID Card :ISO14443 Type A&B |
|
Card thickness |
0.4-1.0mm |
|
Life Time |
500,000 times (In the condition: 205℃, 35~60%RH, Dispense cycle ≤ 1pcs/min) |
|
Stacker Capability |
120pcs(0.76mm standard card) |
|
Removable stacker |
240pcs/500pcs |
|
Card Pre-empty Detection |
7-50pcs±2pcs(default setting :15pcs) |
|
Communication |
RS-232 |
|
Power supply |
DC 24V ± 5% |
|
Temperature |
Operation:0~50℃/0-90%RH(non-condensing) Storage:-10-75℃/0-90%RH(non-condensing) |
|
Dimension(L*W*H) |
256 * 99.8* 165mm |
|
Weight |
Approx. 2.0kg |
Annex1 . Structure and Dimension Drawing
Annex 2: Structure Drawing of CRT-571 with Removable Stacker
Annex 3. Structure Drawing of Removable Stacker
