Home > Products > Motorized Card Reader > Security USB Smart Motorized Access Card Reader And Writer , DC 24V

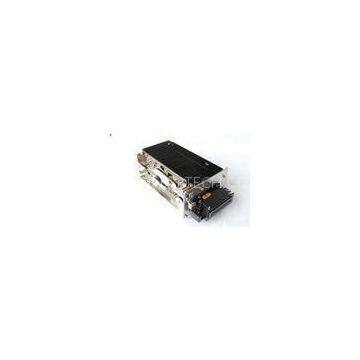

Security USB Smart Motorized Access Card Reader And Writer , DC 24V

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	CRT		Place of Origin	China
Model Number	CRT-350

Product Description

Certification:EMV

Security USB Smart Motorized Access Card Reader And Writer , DC 24V?

Quick Detail:

CRT-350 series are motorized card reader and writer which can read/write IC/RFID/Magnetic card.

Description:

Motorized card reader CRT-350 with below main features:

3 in 1:IC/RFID/Magnetic card read/write Hi-Co (2500 Oe-4000 Oe, 2750 Oe the best)& Lo-co(250 Oe-700 Oe, 300 Oe the best) for option Capture card from the front and rear Reject abnormal card and extra long card Two anti-skimming ways: hardware and software Multiple kinds of shutter options Optional components: power-fail protection & PSAM board(4/8bits) Conform to WOSA/XFS 2.0/3.0 and SP provided Optional interface: RS232 & USB(HID) Life time: 1,000,000 times min. Conform to EMV and ROHS standard

Applications:

ATM

Payment systems

Kiosk terminals

Access control terminals

Security terminals

Parking systems

Specifications:

Card standard	Magnetic Card: ISO7810 ID-1,7811 IC Card: ISO7816-2 Support T=0,T=1 CPU Card Support T=0,T=1 SIM Card RF Card: ISO14443 TYPE A＆B Support Mifare S50,S70,UL Card
Life time	Magnetic head:500,000? passes IC card contact:300,000 passes Motor:500,000 passes
Communication	RS232 interface & USB interface option (HID)
Power supply	DC24V±5%
Current consumption	Standby current: 90mA Peak current: 800mA
Temperature/Humidity	Operation:0~50℃/0 ~ 90%?RH(Non condensing) Storage:-25-80℃/0 ~ 90%?RH(Non condensing)
Dimension (LxWxH)	215x124x90mm
Weight	Approx .1.8kg

Competitive Advantage:

★?High security design

★?Compatible with other brand’s external dimension and communication protocol

★?PSAM Board for option

★?Reject abnormal card automatically

★?Tamper-Proof Design

★?Hi-co & Lo-co for option, if choose Hi-co, Both Lo-co and Hi-co can be operated. ????
