Home > Products > Motorized Card Reader > Fast Motorized Card Reader For Access Control Terminals , Kiosk Smart Card Reader

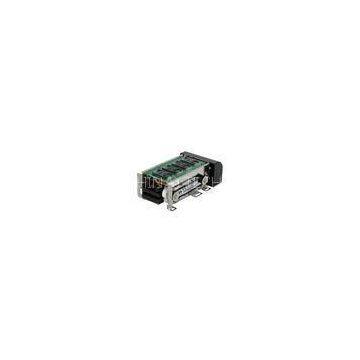

Fast Motorized Card Reader For Access Control Terminals , Kiosk Smart Card Reader

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	CRT		Place of Origin	China
Model Number	CRT-310

Product Description

Certification:EMV

Fast Motorized Card Reader For Access Control Terminals , Kiosk Smart Card Reader

Specifications:

Card standard	Magnetic Card: ISO7810 ID-1,ISO7811 IC Card: ISO7816-2 RF Card: ISO14443 TYPE A＆B
Life time	Magnetic head:500,000? passes IC card contact:300,000 passes Motor:300,000 passes
Communication	RS232 interface
Power supply	DC12V±5%
Current consumption	Static Current: 110mA Peak Current: <1.5A
Temperature/Humidity	Operation:0~50℃/0 ~ 90%?RH(Non condensing) Storage:-20~70℃/0 ~ 90%?RH(Non condensing)
Dimension (LxWxH)	148x86x48mm
Weight	Approx 410g

Quick Detail:

CRT-310 series are motorized card reader equipments for RFID/IC /magnetic stripe card operation, with the function of the card entry from front/rear insertion/ejection.

Description:

Motorized card reader CRT-310 with below main features:

★?RFID/IC card read/write, magnetic stripe card read only

★?Insert and eject the card from both front and rear side

★?RS232 interface

★?DC12V ±5%

★?DC24V/DC12V converter plate

★?Power-fail protection

★?Deal with abnormal cards function

★?Electric shutter and mechanical shutter for option

★?PSAM board for option

★?Support IAP Download

Applications:

Kiosk terminals

Payment systems

Access control terminals

Competitive Advantage:

RFID/IC card read/write, magnetic stripe card read only.

Automatic insertion/ejection of the cards

Insert and eject card from both front and rear

Electric and mechanical shutter for option

Power-fail protection

PSAM board and LED for option

Abnormal card processing

Support IAP download
