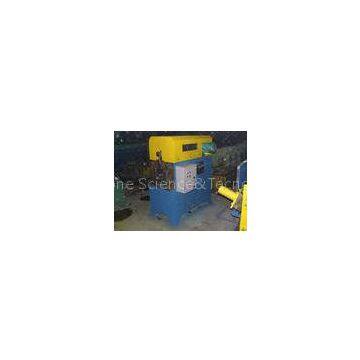

Hydraulic Aluminum Tube / Pipe Forming Machine 90 Max Bend Angle
- 0 Set / Sets per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
Full Auto 80 * 100 Sewer Pipe Roll Forming Machine With Manual Decoiler
-
Automatic Pipe Roll Forming Machine 0.3mm - 0.8mm Colored Steel Sheet
-
29-762 wide deck panel line Automatic Hydraulic Roof Panel
-
11Kw Roofing Roll Forming Machine Hydraulic Metal Sheet Forming Machine 0.27 - 0.8mm
-
Corrugated Panel Roll Forming Machine Automatic Cold Roll Forming Equipment
-
AG Panel Roofing Roll Forming Machine Automatic Roll Forming Line 30 m/min
Product Details
| Brand Name | HRF | Place of Origin | China | |
| Model Number | HRF2X4 |
Product Description
Certification:CE
Description:
1) Suitable raw material: 0.3mm—1.0mm colored steel sheet or
Alumnium sheet.
2. Main motor power:5.5Kw;
3. hydraulic power:5.5Kw
3) Forming speed:10-12m/min
4) Number of roller 19 stands
5) Control system:Simens PLC
6) Material of cutting die:Cr12 mold steel with quench treatment
7) Dimension of the machine: about7500mm×800mm×1200mm
8) Cutting pressure:12 Mpa
10 : Cut-to-length tolerance:≤±2mm
11) Control voltage:410 V,50Hz,3 Ph
12) Shafts diameter:Ф70mm
13) Rollers manufacture:45# steel,HRC48-52, hard Chrome Coated
Main Components of Manual Decoiler:
? Load capacity:1.5 Ton
? Coil inner-diametre:400-580mm
? Coil width:
Technological Process:
Decoiling→ Coil sheet guiding&feeding → Roll forming → Cut to length → Product packing (manual)
Technical Parameter of Down Pipe Elbow:
? Control system: Strong electrical current
? Main motor power:2.2kw
? Max bend angle: 900
? Function: bend and fasten at the same time
? Dimension of the machine: 1300 mm×650 mm×1500 mm
? Speed of bend: 20-25m/ min
Work Flow:
Applications:
Downsprout pipe
Rainwater pipe
Downpipe
Specifications:
Drawing:
|
1 |
Material thickness |
mm |
0.3--1.0mm G350Mpa |
|
2 |
Forming speed |
m/min |
12-18 |
|
3 |
Roll station |
/ |
19 |
|
4 |
Main power |
kw |
5.5 |
|
5 |
Hydraulic power |
kw |
3 |
|
6 |
Control system |
/ |
PLC panasonic/omron/simens/mitsubishi |
|
7 |
Drive |
/ |
Chain drive |
|
8 |
Decoiler |
5T/manual decoiler ( coil car as option) |
