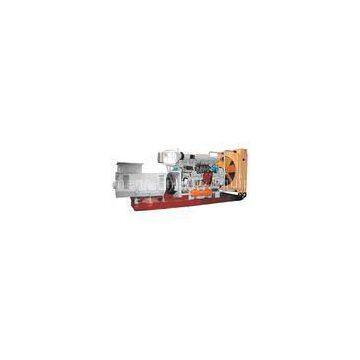

Electrical 200-400KW 50 / 60 Hz 3 Phase Marine Diesel engine(M/E)
- 0 Metric Ton / Metric Tons per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
4 / 6 Wire 2000 kW Industrial, Marine Diesel Electric Generator Set
-
50 kW 4 Stroke Diesel Generator 500 / 514 Rpm For Power Plant
-
Marine Diesel Engine Generator Set 4500 KW Electrical Generator 50Hz / 60Hz
-
Three Phase Diesel Engine Generator Set 1000KW - 5000KW For Industrial
-
400V/1800KW Four Stroke Turbocharged Diesel Engine Generator Set
-
2000kW 250kVA Emergency Diesel Genset 50RPM Middle Speed Intercool Engine
Product Details
| Brand Name | ZICHAI | Place of Origin | China | |
| Model Number | According to the design and technical demand |
Product Description
Certification:CCS,BV,GL
|
Type |
Rated speed (r/min) |
rated power (kw) |
Rated voltage |
Rated frequency |
|
CCFJ200J-W200GF |
1000 |
200 |
400 |
50 |
|
CCFJ220J-W220GF |
1000 |
220 |
400 |
50 |
|
CCFJ250J-W250GF |
1000 |
250 |
400 |
50 |
|
CCFJ280J-W280GF |
1000 |
280 |
400 |
50 |
|
300GF |
1000 |
300 |
400 |
50 |
|
CCFJ350J-W350GF |
1500 |
350 |
400 |
50 |
|
400GF |
1500 |
400 |
400 |
50 |
Main Data??????????????????????????????????? ????????????
|
Number of cylinder? |
4? 6? 8 |
|
|
Bore |
mm |
170 |
|
Stroke |
mm |
200 |
|
Compression ratio |
14.5 |
|
|
Max. combustion pressure |
MPa |
13.0 |
|
Spec. fuel oil consumption |
g/(kW·h) |
198 |
|
Spec. lube oil consumption |
g/(kW·h) |
1.0 |
|
Rated ?Frequency |
HZ |
50/60 |
|
Rated? Power? Factor |
cosφ |
0.8 Lagging |
|
Phase & Connection |
3 phases 4 wires |
|
|
Exciting? Mode |
Brushless |
|
|
Weight |
t |
5.8~7.9 |
Rotation direction of crankshaft: Look from the flywheel side to the free side, to turn left is counter-clockwise
Starting method: Air motor or electric motor.
