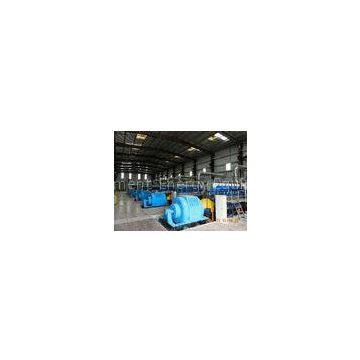

6 * 2MW HFO Fired Power Plant , Electric Power Station Four Stroke Generator Set

FOB Price

Negotiable / Kilogram

1 Kilogram(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	KANGWEI		Place of Origin	China
Model Number	According to the design and technical demand

Delivery Time:Negotiate
Certification:CCS,BV,GL

Technical specificaiton for HFO ?Power plant equipments?
Ⅰ. Gen-set technical specification
No.	Item	Unit	Specification
1	Model		1250/2000/2500/3500GF
2	Rated power?	kW?	1250/2000/250003500
3	Rated rev.	rpm	600
4	Rated voltage	V	11000
5	Rated current?	A	229.6
6	Frequency?	Hz	50Hz
7	Power factor		0.8 (lagging)
8	Phase		3-phase?
9	Voltage fluctuation rate	%	±1
10	Frequency (rev.)??fluctuation rate	%	±0.5
11	Stable voltage regulating rate	%	±2.5
12	Stable frequency (rev.) regulating rate	%	5
13	Transient?voltage?regulating rate	%	±20～-15
14	Stabilizing time	s	5
15	Voltage regulating method		Auto?
16	Speed Governor		Electronic?hydraulic
17	Frequency regulating method		Auto/Manual?
18	Lubricating method		Pressure lubricating
19	Cooling method?		Close circuit of fresh cooling water
20	Coupling?		Flexiable
21	Painting color		Blue
22	Overall dimension	mm	9890x2560x4015
23	Net weight	kg	75000
Ⅱ. Diesel engine specification
No.	Item	Unit	Specification
1	Engine Model		DN8340ZD2
2	Type		In-line, 8-Cyls, four-stroke, direct injection, charged, inter cooled
3	Bore	mm	340
4	Stroke?	mm	450
5	Total displacemen	L	408.35
6	Mean piston seed?	m/s	9
7	Rated power	KW	4200
8	Rated rev.	rpm	600
9	Overload??(1 hr per 12 hrs)???????????????????????	kW/rpm	4620/600
10	Mean effective pressure	MPa	2.56
11	Compression ratio		13.5
12	Rotation direction		Clockwise, viewed from flywheel end.
13	Firing order		1-4-7-6-8-5-2-3
14	Specific fuel oil consumption	g/kW.h	198+3%
15	Specific Lube oil consumption	g/kW.h	< 1.2g/kW.h
