Home > Products > Desktop Switching Power Supply > Hi-pot 12V 4A Desktop DC Power Supply FCC Part 15 Class B For Security Cameras

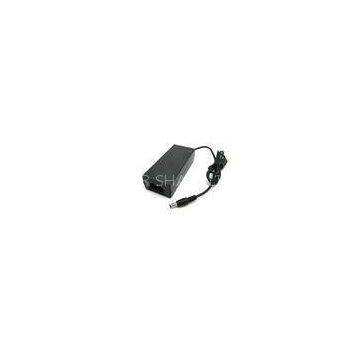

Hi-pot 12V 4A Desktop DC Power Supply FCC Part 15 Class B For Security Cameras
- T/T L/C D/P D/A
- 7 days
You May Like
-
Camera External Desktop Switching Power Supply Constant Current
-
Electrical Desktop Switching Power Supply / External 12V 5A Adapter
-
18Volt 45W Desktop DC Power Supply Short Circuit For LED Light EU Plug
-
24V 3A Desktop Switching Power Supply / Universal LED Power Adapter
-
Automatic Desktop Switching Power Supply 24V 6A For LED Display
-
12V 2A Switching Mode Power Supply Hi-pot , Over Voltage Protection
Product Details
| Brand Name | RAYTOP | Place of Origin | China | |
| Model Number | ETZ12004000 |
Product Description
Certification:CE, RoHS, FCC
Hi-pot 12V 4A Desktop DC Power Supply FCC Part 15 Class B For Security Cameras
Quick Detail:
Switching mode power adapter, DC 12V 4A, desktop style in conformity with CE, RoHS, FCC certification.
Specs:
Input: AC100-240V, 0.2A max.
Frequency: 50/60Hz
Output: DC12V, 4.0A
DC Cable: 20AWG, Copper, length: 1.2M
Plug: EU, UK, US, SAA, CCC
Features:
- Worldwide input voltage 100-240Vac;
- High efficiency:>83%;
- Protection: Short circuit protection, over voltage protection, over current protection.
- MTBF: 50,000 hours.
Approval: CE, RoHS, FCC
Warranty: 2 years
Description: ?
This is an AC power adapter, desktop adapter, come with single output tip 5.5x2.1x10mm. It has high efficiency as well as steady performance. The tip size and plug type can be changeable.
Note: indoor use only.
Applications:
used for All-in-One PC, Medical Devices, LCD TV, Laptops, Electronic Refrigerator, Portable DVD, Stereo, Security and Protection Products, POS system, Tax Printer, Network Equipment, Telecom equipment etc.
Specifications:
|
Input |
Rated Input Voltage |
AC100~240V |
|
Input Voltage Range |
AC 90~264V |
|
|
Rated Frequency |
50/60 Hz |
|
|
Input Frequency Range |
47~63 Hz |
|
|
Input AC Current |
0.2A |
|
|
Inrush Current |
30A |
|
|
Output |
Rated Output Voltage |
DC12V |
|
Rated Output Current |
4000mA |
|
|
Rated Power |
48W |
|
|
Ripple and Noise |
150mV p-p |
|
|
Standby Power Consumption |
0.5W |
|
|
Turn-on |
5s |
|
|
Hold-up |
20s |
|
|
Over Voltage Protection |
Yes |
|
|
Over Current Protection |
Yes |
|
|
Short Circuit Protection |
Yes, automatically recover after short circuit removed. |
|
|
Reliability |
Hi-pot |
3000Vac |
|
Insulation Resistance |
Input to output at 500Vdc |
|
|
Leakage Current |
5mA |
|
|
EMI Standards |
FCC Part 15B Class B |
|
|
RoHS Compliant |
Yes |
|
|
MTBF |
50,000 hours |
|
|
Burn-in |
405 ℃, full load, 4 hours |
|
|
Drop Test |
6 direction, each one time from height 1.0M |
|
|
Environmental |
Operating Temperature |
0~40℃ |
|
Operating Humidity |
10~80% |
|
|
Storage Temperature |
-20~65℃ |
|
|
Storage Humidity |
0~90% |
|
|
Safety Approvals |
CE, RoHS, FCC, UL, SAA |
|
|
Warranty |
