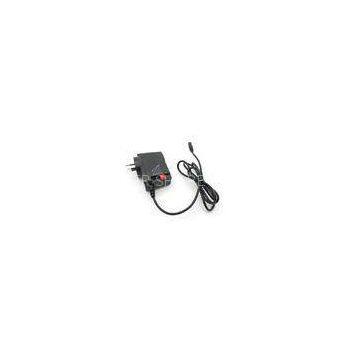

1000mA 12W Wall Mount Power Adapter Ajustable 3V - 12V With SAA Plug
- T/T L/C D/P D/A
- 7 days
You May Like
-
High Efficency AC/DC Wall Mount Power Adapter 2500mA 30W For SATA / ADSL
-
5V 1000mA Wall Mount Power Supplies 5.5x2.1mm EU Plug , 50Hz / 60Hz
-
DC6V 500mA Switching Wall Mount Power Adapter Over Voltage With UK Plug
-
12V 200mA Wall Mount Power Supply FCC Certified For Telephones , 1.2M
-
10Watt SAA Plug Switching AC To DC Power Adapter Wall Mount For SATA
-
AC/DC Wall Mount Power Adapter US Plug 10W DC 5V 2.0A For ADSL , Short Circuit
Product Details
| Brand Name | RAYTOP | Place of Origin | China | |
| Model Number | ET1200600B |
Product Description
Certification:CE, RoHS, FCC
1000mA 12W Wall Mount Power Adapter Ajustable 3V - 12V With SAA Plug
Quick Detail:
Switching mode power adapter with multiple rated output voltage DC 3.0/5.0/6.0/7.5/9.0/12.0V. 8 different tips guarantee the great compatibility with many electronic devices such as Router, POS System, Security Cameras, Tablets etc.
Specs:
Input: AC100-240V, 200mA Max.
Frequency: 50/60Hz
Output: DC3.0/5.0/6.0/7.5/9.0/12.0V
DC Cable: 22AWG, Copper, length: 1.2M
Plug:SAA
8 different size tips.
Features:
-High efficiency:>85%;
-Protection: Short circuit protection, over voltage protection, over current protection.
-MTBF: 50,000 hours.
Approval: CE, RoHS, FCC
Warranty: 2 years
Description: ?
This is an universal AC adapter come with 8 different size tips, its output vary from 3.0 to 12.0 DC. It has high efficiency as well as steady performance.
Note: indoor use only.
Applications: widely used for Router, POS System, Security Cameras, Tablets etc.
Specifications:
|
Input |
Rated Input Voltage |
AC100~240V |
|
Input Voltage Range |
AC 90~264V |
|
|
Rated Frequency |
50/60 Hz |
|
|
Input Frequency Range |
47~63 Hz |
|
|
Input AC Current |
200mA |
|
|
Inrush Current |
30A |
|
|
Output |
Rated Output Voltage |
DC3/5/6/7.5/9/12V |
|
Rated Output Current |
1000mA |
|
|
Rated Power |
12W |
|
|
Ripple and Noise |
150mV p-p |
|
|
Standby Power Consumption |
0.3W |
|
|
Turn-on |
5s |
|
|
Hold-up |
20s |
|
|
Over Voltage Protection |
Yes |
|
|
Over Current Protection |
Yes |
|
|
Short Circuit Protection |
Yes, automatically recover after short circuit removed. |
|
|
Reliability |
Hi-pot |
3000Vac |
|
Insulation Resistance |
Input to output at 500Vdc |
|
|
Leakage Current |
5mA |
|
|
EMI Standards |
FCC Part 15B Class B |
|
|
RoHS Compliant |
Yes |
|
|
MTBF |
50,000 hours |
|
|
Burn-in |
405 ℃, full load, 12 hours |
|
|
Drop Test |
6 direction, each one time from height 1.0M |
|
|
Environmental |
Operating Temperature |
0~40℃ |
|
Operating Humidity |
10~80% |
|
|
Storage Temperature |
-20~65℃ |
|
|
Storage Humidity |
0~90% |
|
|
Safety Approvals |
CE, RoHS, FCC, UL, SAA |
|
|
Warranty |
2 Years |
