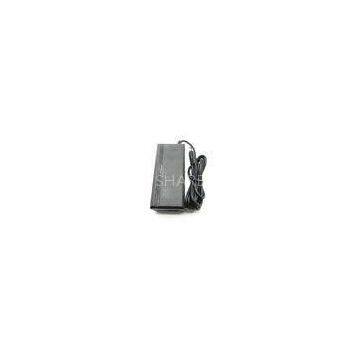

12V 2A AC To DC Power Adapter Over Current / Constant Current 5.5x2.1mm
- T/T L/C D/P D/A
- 7 days
You May Like
-
Desktop External Power Adapter 36W For LED Light , FCC Part 15B
-
Over Voltage AC To DC Power Adapter Desktop 36W 12V UK Plug For LCD TV
-
Hi-pot 12V 4A Desktop DC Power Supply FCC Part 15 Class B For Security Cameras
-
Camera External Desktop Switching Power Supply Constant Current
-
Electrical Desktop Switching Power Supply / External 12V 5A Adapter
-
18Volt 45W Desktop DC Power Supply Short Circuit For LED Light EU Plug
Product Details
| Brand Name | RAYTOP | Place of Origin | China | |
| Model Number | ETZ12002000A |
Product Description
Certification:CE, RoHS, FCC
12V 2A AC To DC Power Adapter Over Current / Constant Current 5.5x2.1mm
Quick Detail:
Switching mode power adapter, DC 12V 2000mA, desktop style in conformity with CE, RoHS, FCC certification.
Specs:
Input: AC100-240V, 0.2A max.
Frequency: 50/60Hz
Output: DC12V, 2.0A
DC Cable: 22AWG, Copper, length: 1.2M
Plug: EU, UK, US, SAA, CCC
Features:
- Worldwide voltage input;
- High efficiency:>83%;
- Protection: Short circuit protection, over voltage protection, over current protection.
- MTBF: 50,000 hours.
Approval: CE, RoHS, FCC
Warranty: 2 years
Description: ?
This is an AC power adapter, desktop adapter, come with single output tip 5.5x2.1x10mm. It has high efficiency as well as steady performance. The tip size and plug type can be changeable.
Note: indoor use only.
Applications:
used for LCD TV, LCD Display, Stereo, LED, LED Strip Lights, Security and Protection Products, POS system, Tax Printer, Telecom equipment etc.
Specifications:
|
Input |
Rated Input Voltage |
AC100~240V |
|
Input Voltage Range |
AC 90~264V |
|
|
Rated Frequency |
50/60 Hz |
|
|
Input Frequency Range |
47~63 Hz |
|
|
Input AC Current |
0.2A |
|
|
Inrush Current |
30A |
|
|
Output |
Rated Output Voltage |
DC12V |
|
Rated Output Current |
2000mA |
|
|
Rated Power |
24W |
|
|
Ripple and Noise |
150mV p-p |
|
|
Standby Power Consumption |
0.5W |
|
|
Turn-on |
5s |
|
|
Hold-up |
20s |
|
|
Over Voltage Protection |
Yes |
|
|
Over Current Protection |
Yes |
|
|
Short Circuit Protection |
Yes, automatically recover after short circuit removed. |
|
|
Reliability |
Hi-pot |
3000Vac |
|
Insulation Resistance |
Input to output at 500Vdc |
|
|
Leakage Current |
5mA |
|
|
EMI Standards |
FCC Part 15B Class B |
|
|
RoHS Compliant |
Yes |
|
|
MTBF |
50,000 hours |
|
|
Burn-in |
405 ℃, full load, 4 hours |
|
|
Drop Test |
6 direction, each one time from height 1.0M |
|
|
Environmental |
Operating Temperature |
0~40℃ |
|
Operating Humidity |
10~80% |
|
|
Storage Temperature |
-20~65℃ |
|
|
Storage Humidity |
0~90% |
|
|
Safety Approvals |
CE, RoHS, FCC, UL, SAA |
|
|
Warranty |
2 Years |
