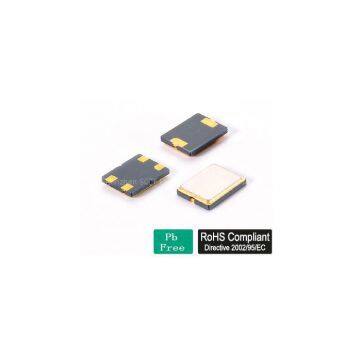

SMD 5*7 Quartz Crystal Resonator 11.0592MHz
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Brand Name | SCTF | Place of Origin | China | |
| Model Number | SMD 5*7 11.0592MHz |
Product Description
FEATURE
● Rugged AT-cut crystal construction.
● Extremely compact SMD package.
● High precision characteristic covering up to high frequency range.
● Automatic mounting.
● Embossed taping specification.
● Reflow soldering.
● Pb-free and RoHS/Green compliant.
APPLICATIONS
● Ideally suited designed for disc drives, PCMCIA, PCs and hand-held
electronic products.
●Electrical Specifications
Holder Type:5x7mm Ceramic Surface Mount
Frequency Range:5.500 to 150.000 MHz
Frequency Tolerance（△F）（at25℃）:±10ppm to ±30ppm
Frequency Drift:±10ppm to ±30ppm ※(See Notes)
Operating Temperature Range:-20℃ - +70℃ / -40℃ - +85℃
Storage Temperature Range:-40℃ - +85℃ /-55℃ - +125℃
Aging（25℃）:±3ppm/ year max
Shunt Capacitance（C0）:7pF max.
Drive Level:100μW (300μW max.)
Insulaton Resistance（Rs）:500 Megaohms Minimum at D.C100V
Load Capacitance（CL）:Suggested by customer
※Notes:±10，±20，±30ppm (-20℃ to +70℃)
±20，±30，±50ppm (-40℃ to +85℃) or depends on customer
