8mm Spherical Bend Curved Tempered Laminated Glass Heat Insulation For Ceiling

8mm Spherical Bend Curved Tempered Laminated Glass Heat Insulation For Ceiling

Quick Detail

1. Deflection performance

2. Less light aberration

3. Safety glass

4. Standard Q/SNY-1999

5. Good Accuracy in arc

6. Mechanical attack resistance performance

7. Thermal stability

8. Anti-wind pressure ability?

Description:

Two or more sheets of curved glass are placed together with one or more layers of PVB or SGP

1. Features:

1)Safety Once broken, the broken pieces of laminated glass would not fall down or shoot away, enable the human or facilities be protected from hurt.
2)Safeguard The laminated glass has strong resistance against theft, malicious destruction and violence
3)Sound-insulation The PVB film has insulation function to the noise wave, thus the transferring of noise can be weakened.
4)Anti-UV The additive of PVB can filter 99% of the ultraviolet ray from the sunlight and protect the interior decoration from aging or fading caused by UV.
5)Heat-insulation The laminated glass(specially for colorful laminated glass) can reduce the solar radiation, saving energy and air-conditioning cost
6)Fire-proof the laminated glass will not break or collaspe quickily so?as to keep the fire from spreading. Time can be saved for warning, human’s evacuating and extinguishing
When broken by unexpected force, the broken pieces will be bonded by PVB with radial crack but hurting no people. The original shape and visibility can still be kept for continuous use for certain time.
As per people’s different requirements, we can make many types: clear/colorful laminated, coated laminated, tempered/HS laminated, curved laminated, bulletproof laminated, decorative laminated etc. widely used in car windscreens and high buildings or some places have security requirements just like bank, jewelry cabinet and so on
Commonly, each PVB film layer thickness is 0.38mm,we will use the right layers according to clients’ actual products

2. Application:

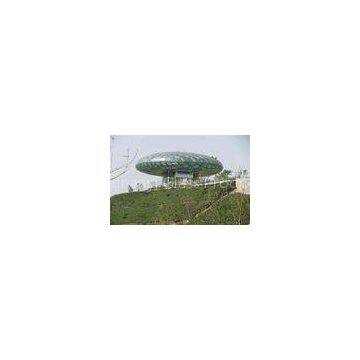

It is used in curtain wall with curved structure, skylight, sightseeing elevator, Hyperboloid and taper shape buildings.
Tempered curved glass: Curtain wall with curved structure, skylight, sightseeing elevator, indoor glass partition with curve structure, glass enclose etc.

3. Specification:?

Thickness: 3mm-25mm
Max size: 2800*6400 Min size: 50*50mm
Radius: 200mm-2800mm Max Arch Height: 1200mm

Any shape according to customers requirement is available, for example S form, U form, right-angle and spherical surface

4. Quality:?

In accordance with Standard Q/SNY-1999 Hot Curved Glass
In accordance with CE Standard?
Pass Chinese Safety Glass Compulsory Certification (CCC).
