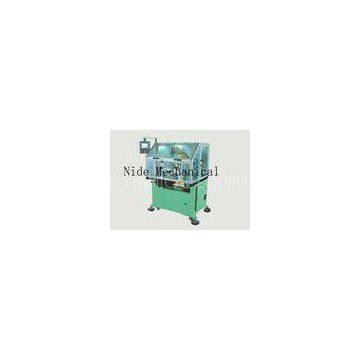

Servo Single Tool Commutator Turning Machine With Aluminum Alloy Frame

FOB Price

Negotiable / Set

1 Set(Min. Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Nide		Place of Origin	China
Model Number	ND-LHL-QSF

Product Description

Delivery Time:45 working days
Certification:None

Servo?Single?Tool?Commutator?Turning?Machine?With?Aluminum?Alloy?Frame

?
Quick Detail:
1, Servo single tool Commutator Turning Machine is used for commutator turning,?

2, The cutter moves in axial or radial direction. It is driven by three spindle servo motor.

3, The diameter of commutator is 12 to 40mm.?
4, PLC and touch screen control.
5, Cutter feeding and cutting is controlled by servo motor.
?
Specifications :

1. Power supply: single phase 220V AC ±5%

2. Rated power: 1.5KW

3. Air pressure: 0.4-0.7Mpa

4. Weight: 110kg

5. Diameter of armture shaft: 3-17

6.Armature lamination:20-60

7.Diameter of armature: 20-60

8. Diameter of commutator:12-40

9. Length of armature: Max 350

?
Description:
?
Equipped with lubrication device and aluminum alloy frame, this machine features advance technology and modern shape, has easy operation system and self-checking system.
Meanwhile, this machine can be equipped with an automatic feeding device to achieve a fully automatic operation. PLC and touch screen control. Cutter feeding and cutting is controlled by servo motor.
?
Applications:?
This machine is suitable for commutator fusing, it’s widely used in the motor field, such as wiper motor, vacuum cleaner motor, mixer motor, window lifter motor, condenser motor, power tool motor, DC motor, etc.
This machine is suitable for armature within the specification of the below table.
?

Competitive advantages:
Equipped with lubrication device and aluminum alloy frame, this machine features advance technology and modern shape, has easy operation system and self-checking system.
Meanwhile, this machine can be equipped with an automatic feeding device to achieve a fully automatic operation. PLC and touch screen control. Cutter feeding and cutting is controlled by servo motor.
