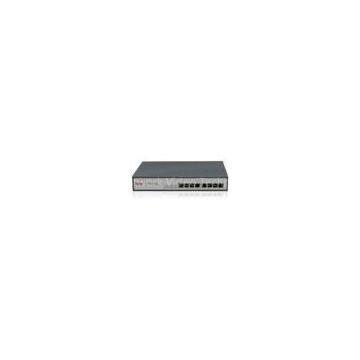

Network 8 port Gigabit PoE Switch with AutoUplink
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
Full - Duplex Power Over Ethernet Switch with 1 Port Fiber
-
10M / 100M 8 Port IEEE802.3at PoE switch for CCTV security
-
10 / 100M single port IEEE802.3af PoE injector for IP Camera
-
4 port Fiber Optic Media Converter single mode to multimode converters
-
Gigabit Power over Ethernet splitter 5v and 12v for IP camera
-
1.6 Gbps 4 Port PoE Switch 10M / 100M PoE Ethernet Switches For Security Protection
Product Details
| Brand Name | ONV | Place of Origin | China | |
| Model Number | POE33008P-at |
Product Description
Certification:CE, FCC, RoHS, ISO
8 port Gigabit PoE Switch For Security Network
Quick Detail:
Product: POE33008P?
Type: 8-PORT100/1000M SWITCH WITH 4-PORT POE,IEEE 802.3at,PoE Power Output: 25.5Watts,PoE Budget: 120 Watts
Power Pin Assignment:Data provided over pairs over 1/2 and 3/6 ,Power over spare pairs 4/5(+) and 7/8 (-)
Detailed Product Description
-??IEEE 802.3at power on up to?8 ports
- Supply power to wireless access points and surveillance cameras over Cat-5 cabling
- 8 10/100/1000 Mbps Ports with AutoUplink?
- Supports PoE power up to 25.5W for each PoE port
- Supports PoE power up to 210W for all PoE ports
- Supports PoE IEEE 802.3at compliant PDs
- Hardware based 10/100/1000Mbps Auto-Negotiation and Auto MDI/MDI-X
- 8K entry MAC address table of the PoE Switch POE33008P-at with auto-learning and auto-aging
- LED indicators for monitoring power, link, activity and speed
- External power adapter supply?
?
Target Industries
-HD monitor transmission and power supply
-Wireless AP layout transmission and power supply
-Network telephone transmission , intelligent house and home
system
-Intelligent transportation supervisory system(ITS)
- High-speed Way supervisory/Tele-Communication System
- Security protection system, TV medical treatment
- Long-distance Muti-media Schooling, Campus monitoring
- Long-distance broadcast television transmission system
- High-building Security Protection, Military Tele-Com projects
Specifications
|
Product Name |
8 Port 10/100/1000M PoE switch with 1 Port Fiber |
|
Model |
POE33008P-at |
|
Description |
8 Port 10/100/1000M Ethernet switch with 8 port IEEE802.3at PoE injector |
|
Connector |
8 10/100/1000Mbps RJ45 Ports, AUTO Negotiation/AUTO MDI/MDIX |
|
Media |
1000Base-TX (≤100, Catalogue 5 cable) |
|
Switch Fabric |
16Gbps |
|
Architecture |
Store-And-Forward Architecture |
|
MAC Address |
8K |
|
Compliance |
IEEE 802.3i；IEEE 802.3u；IEEE 802.3x Flow Control；IEEE 802.1af DTE Power via MDI |
|
PoE Port |
1-8 Port support PoE (30Watts per port) |
|
PoE Standard |
IEEE802.3at |
|
PoE Type |
End-span (Mid-span optional) |
|
PoE Feature |
Output power 30Watts (IEEE802.3at) |
|
Power Pin |
1/2+,3/6- (4/5+,7/8- optional) |
|
PoE Budget |
220Watts |
|
Environment |
Operating temperature: 0 to 55° C Storage temperature: -20 to 75°C |
|
EMI Safety |
FCC Class A, CE |
|
Power Supply |
Input AC100-240V 50/60Hz, |
|
LED Display |
Power, Ethernet Data, PoE working status |
|
Dimenssion |
280 x 185 x 45mm,2.2kg |
|
After-sales |
Switch warranty: 1 year, Adapter warranty: 2 years. Lifetime Maintenance |
|
Packing List |
Switch, Installation kit,?Installation Guide,Warranty card, User card. |
|
Product Name |
8 Port 10/100/1000M PoE switch with 1 Port Fiber |
|
Model |
POE33008P-at |
|
Description |
