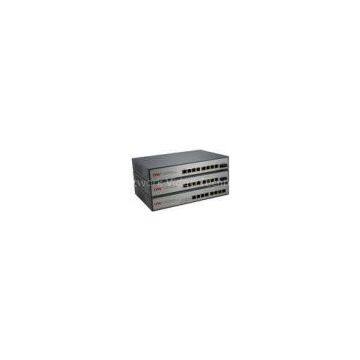

120 Watts 8 Port PoE Ethernet Switch , IEEE 802.3af 24 Gbps Power Over Ethernet

120 Watts 8 Port PoE Ethernet Switch , IEEE 802.3af 24 Gbps Power Over Ethernet

Quick Detail:

Name: POE Ethernet Switch, Power Over Ethernet Switch

PoE Ports: 8

Transmission Rate: 10 /100/1000 Mbps

Ethernet Standards: IEEE 802.3af

PoE Power Output: 15.4 Watts

PoE Budget: 120 Watts

Bandwidth: 24 Gbps.

Communication Mode: Full-Duplex & Half-Duplex.

Function: POE, SNMP, VLAN Support

To fulfill the demand of PoE for network applications with Gigabit speed transmission, the ONV PoE Gigabit Ethernet Switch -POE33008P is an ideal solution. Each 10/100/1000Mbps port of POE33008P features IEEE 802.3af Power over Ethernet (PoE) that combines up to 120 Watts power output and data per port over one Cat.5E / 6 Ethernet cable, with totally 120 Watts PoE budget on whole system

>It is designed specifically to satisfy the growing demand of power consuming network PD (powered devices) such as network cameras, wireless LAN access points and other network devices .

Product features
- IEEE 802.3af power on up to?8 ports
- Supply power to wireless access points and surveillance cameras over Cat-5 cabling
- 8 10/100/1000 Mbps Ports with AutoUplink?
- Supports PoE power up to 15.4W for each PoE port
- Supports PoE power up to 110W for all PoE ports
- Supports PoE IEEE 802.3af compliant PDs
- Hardware based 10/100/1000Mbps Auto-Negotiation and Auto MDI/MDI-X
- 8K entry MAC address table of the PoE Switch POE33008P with auto-learning and auto-aging
- LED indicators for monitoring power, link, activity and speed
- External power adapter supply?

Target Industries
-HD monitor transmission and power supply
-Wireless AP layout transmission and power supply
-Network telephone transmission , intelligent house and home
system
-Intelligent transportation supervisory system(ITS)
- High-speed Way supervisory/Tele-Communication System
- Security protection system, TV medical treatment
- Long-distance Muti-media Schooling, Campus monitoring
- Long-distance broadcast television transmission system
- High-building Security Protection, Military Tele-Com projects

Specifications
