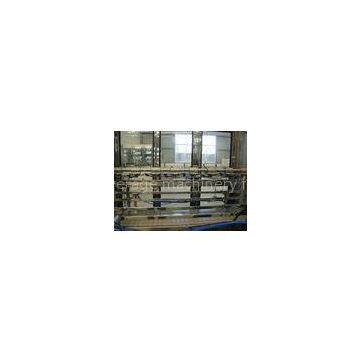

400 bottles / hour 5L Drinking Water Bottling Line , 0.37KW

Auto-rotating rinser

Outline
ZX-4-type washer is installed my factory production of ancillary products, bottle machines, machine startup drive, low noise, reasonable design, easy assembly and disassembly, simple operation, widely used in a variety of water, wine and other large PET bottle bottled water.
The main technical parameters:
1.Model Number: ZX-4
2.Production capacity: 400bph
3.Bottle diameter: D = φ130 ~ φ160mm
4.Bottle Height: H = 160 ~ 400mm
5.Power: 0.37KW
6.Air pressure :0.6-0 .8 mp

Equipment Accessories Configuration
PLC: Mitsubishi
Pneumatic Original: Korea Aipu Tai
Pump: Southern Pump
Electric: Schneider

?

Automatic linear filling machine

Purpose:
ZG-4 series pressure filling machine is based on the introduction, digestion and absorption of foreign advanced technology, according to China\'s beverage filling craft requirements, innovations developed from a kind of advanced filling equipment, mainly used for pure water , mineral water and other non-carbonated beverage filling capacity. Advanced structure, smooth, reliable, easy to operate, high production efficiency characteristics.The main technical parameters:
Model :ZG-4
Production capacity: 400 bph
Filling pressure: atmospheric pressure
Filling temperature:? room temperature
Power: 0.55kw
Air pressure: 0.6-0.8mp
Overall consumption: 0.55 cubic meters / minute
Dimensions: Approximately 1200 * 1100 * 1800 mm
Weight: 350Kg
Equipment Accessories Configuration
????????PLC: Mitsubishi
????????Pneumatic Original: Korea Aipu Tai
????????Pump: Southern Pump
????????Electric: Schneider
?

?Automatic capping machine

Overview:
The factory production of ZXG-1 automatic capping machine is digesting and absorbing foreign advanced technology, integrated China\'s national conditions and design. It has advanced design, reasonable structure, beautiful appearance, convenient debugging. And to achieve a certain degree of automation, and affordable, is ideal for small and medium sized beverage manufacturers equipment, widely used in wine, mineral water, purified bottled water and other liquids capping
The main technical parameters:
1 capping heads: single head
2 Production capacity: 400bph
3 Suitable bottle size: H = 160 ~ 400mm
???????????????????????D = φ130 ~ φ160mm
4 Applicable bottle: Standard screw caps
5 Motor power: 0.55kW
6 management cover Motor: 0.09 kW
7 Dimensions: Approximately 850 * 700 * 1950mm
8 Weight: 300kg;

conveying power head

Power: 0.55KW
Function: Passing bottles, according to the production capacity of the conveying speed can be adjusted.
transporting intermediate frame
Tentative 12 m

Equipment?List
