400 bhp (5L) Drinking water bottling line , Liquid Bottle Filling Machine

Equipment Introduction

Feature:

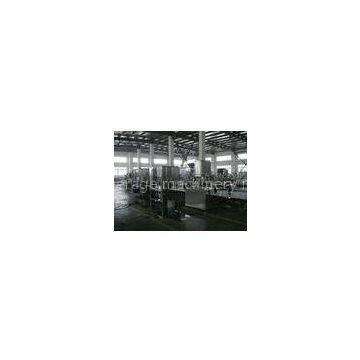

　　XGF4-4-1 type modular washing, filling, sealing the straight line is designed for 5L plastic bucket cleaning, filling, capping production equipment. Since the introduction of advanced production lines and sophisticated technology, with a high degree of automation machine, adaptable, easy operation, safety and good performance, and its advanced nature of similar products in the domestic industry in a leading position. This production line consists of automatic linear cleaning, automatic linear filling and automatic linear capping, conveyor components.
5L automatic filling machine is suitable for drinking water equipment for a variety of shaped bottles, filling volume is adjustable, its technical level ahead of the domestic industry with similar products.
The main technical parameters:Production capacity: 400 bph
Filling capacity: 5L
Filling heads: 4
Cleaning heads: 4
Capping heads: 1
Bottle size: various shapes PVC, PP, PET plastic bottles
Filling accuracy: 5L 5%
Air pressure: 0.6Mpa
Air consumption: 50L/min
Filling with water: 2m3 / h
Cleaning water: 0.6m3 / hTotal power: 2.2KW
Dimensions: Approximately 4800 * 1000 * 2200mm
Weight: about 1700kg

Electrical configuration:
