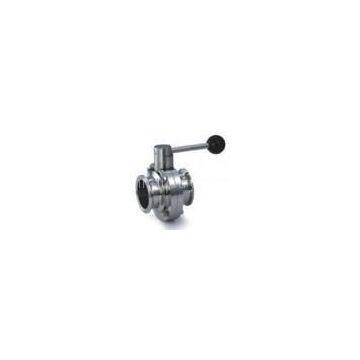

stainless steel Sanitary 3A clamped Butterfly Valve(304/316L)

The series of this valve is a kind of sanitary pneumatic or manual handle butterfly valve,

Standard or nonstandard:standard

Structure:butterfly

Pressure: 0~145Psi

Power:manual/electric/pneumatic

Material:stainless steel

Temperature of media:-25to180℃

Media:water

Port Size:DN15toDN200

Place of origin:Zhejiang,China(Mainland)

Brand:Aomite

Work Principle:

This kind of valve can be handled both by manual or an electric actuator ,and also can be handled by a pneumatic actuator

Standard Design:

Various standards of valves can be provided to clients:DIN,3A,SMS,ISO/IDF,BS/RJT, MANCON  etc.

The series of Aomite butterfly valve:welded,clamp,male,weld/male,union/male,three-pieces ect.

Technical Data

Material:1.Contact with the product components-304/304L/316L,Forging

        2.Material No contact with the product components-304

Sealing material:1.Standard-EPDM(Working Temperature:-20~+135°C)

                 2.Option- SILICONE ( Working Temperature:-50+180°C)

                 VITON ( Working Temperature:-30+230°C)

Surface treatment:1.Inside surface treatment (Ra≥0.4~0.8um)

                  2.Surface treatment (Ra≥0.8~1.6um)
