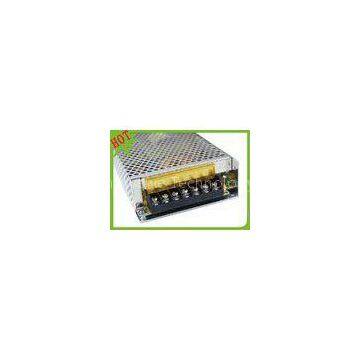

Metal Case Regulated Switching Power Supply 12 V 12.5A

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Xingweiye		Place of Origin	China
Model Number	HT-150-12

Product Description

Delivery Time:1-7 working days after getting deposit
Certification:CE RoHs FCC

Metal Case Regulated Switching Power Supply 12 V 12.5A

Quick Detail:

9 years production experience in power supply. 3 senior engineers with over 15 years experience in this field Low power consumption, high reliability Protections: Short circuit/Over load/Over voltage 100% full loading burn-in test All products have been checked and packaged in good condition before dispatch

Applications:

1.Industrail Equipment

2, Communications and security products;

3, Digital and electronic products

4, Fiber transceivers, game player, LED, CCTV camera;

5, Electrical Equipment, Instrumentation

6.LED Strip Lighting/ LED lamp / LED Lights

7.LED Display,etc.

Description:

150W 12V12.5A POWER SUPPLY

Universal AC Input (full range)

Dimension: 159*97*38mm (L\'W\'H\')?

Cooling by free air convection

Specifications:

Model?number	HT-150-12
Input	Input?voltage	AC90-135V/170-264V ?50/60Hz
Output	Max?power	150W
Output?voltage	DC?12V??+?/?-?5%
Ripple?wave	(mVp-p):??<10%
Temperature?coefficient	±0.02%/°C
Setup rise hold up time	200s? 100s? 30s
Protection	Overload?protection	105%-150%vA,automatic?recovery
Short-circuit?protection	Once?short-circuit?protection,?automatic?recovery
Over-voltage protection	115~135%
Insulation	Withstand Voltage	Input and output internal1.5KVAC,Input and enclosure1.5KVAC,Output and enclosure0.5KVAC
Isolation resistance	Input and output internal: Input and enclosure, Output and enclosure500VDC/100MΩ
Environment	Working?temperature	0°C-40°C,10%-90%RH
Store?temperature	-10°C~ +60°C,10%-90%RH
Size	Size	1599738mm
Net?weight	0.5kg

Competitive Advantage:

1. Timely delivery : 1-7 business days (depends on quantity)

2. OEM and ODM Service.

3. Factory direct sales: Wholesale discounts & good quality

4. Certification: Our products are mostly certified by CE, LVD, RoHs, EMC, FCC

5. Good service: Your inquiry related to our products or prices will be replied in 24hours. Well-trained and experienced staffs to answer all your enquires in fluent English
