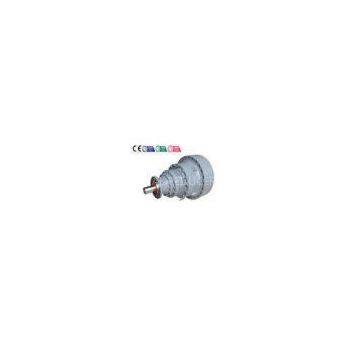

Place - Saving Design Planetary Gear Reducer HN Series With Low Rolling and Sliding Speeds

Quick Details:

Gearcase housing: HT cast Iron Housing suitable for outdoor installation

Mounting position: foot mounted, ?hollow shaft mounted, ?solid shaft mounted

Output shaft: hollow shaft , solid shaft

? ? ? ?Backstop: Available on all frame sizes With/without anti-back Backstop

Input Speed: 750rpm – 1800 rpm

Output Speed: 0.1 rpm- 350 rpm

Power range:0.4～ 9551 KW ? ?

Ratio rang: I = 3.5～15000

Torque rang: 450～11205000 N.m ??

Descriptions:

This type of efficiency ensures that a high proportion of the energy being input is transmitted through the

gearbox, rather than being wasted on mechanical losses inside the gearbox.

With the?HN Series Planetary Gear Reducer?unit series, HENGTAI provides also standardized gear unit solutions

for higher?power rating ranges in the proven HENGTAI quality. With 27 sizes and seven basic types the

PLANUREX?series ensures torque ranges of up to 2,600,000 Nm and transmission ratios of 4,000:1.

Specifications:

Model: HN2B, HN2Y, HN2W, HN3B, HN3Y, HN3W

Sizes:9,10,11,12,13,14,16,17,18,19,20

Applications:

Storage:

1: Pls do not store in outdoor.

2: Pls put cardboard, wood or other material between the products and floor. the gear box cannot directly

? ?touch the floor.

WARRANTY:

HFT guarantees the products sold for one year from the date of delivery.

Warranty is limited to repair or replacement, free at our plant, of defective parts?due to an ascertained

defect of material or manufacture. The parts replaced remain our property. All other compensation is

excluded, nor can any direct and/or indirect damage be claimed of any nature, also for the temporary lack

of use of the goods purchased.

THE CAUSE FOR BREAKDOWN AND SETTLEMENT OF REDUCER
