Home > Products > Bevel gear reducer > Multi - stage gear unit for low output speeds Bevel gear reducer K series

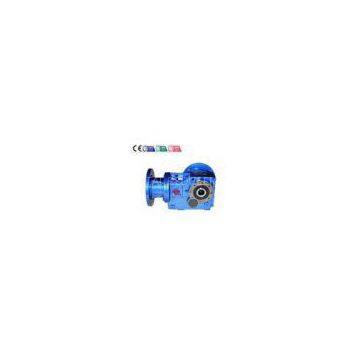

Multi - stage gear unit for low output speeds Bevel gear reducer K series
- 0 Set / Sets per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
hollow shaft helical Bevel gear reducer for metallurgy / mining
-
electric motor speed reduction Bevel gear reducer for lifting equipment
-
Anode hoisting gear equipment for Aluminum equipment Bevel gear reducer HT series turning machinery
-
Planetary Gear Reducer HN series used for Central drives for tube mills
-
Bevel gear reducer HT series turning machinery applied for lifting equipment
-
Place - saving design Planetary Gear Reducer HN series with low rolling and sliding speeds
Product Details
| Brand Name | HENGTAI | Place of Origin | China | |
| Model Number | HK series |
Product Description
Certification:CE,ISO9001:2008,ISO14001,GB28001
Quick Details
Rated Power: 0.12~ 200KW
Ratio:?4.09~ 195.2
Output Torque: 170~ 42500N.m
Gearing Arrangement:?bevel?gear
Input and output Speed:?according related parameter list
Place of Origin:?Zhejiang, China( Mainland)
Model Number: HK series
Brand Name:?HENGTAI
Color:?According to customer
Mounting position:?foot- mounted and flange-mounted
Material for box:?Cast Iron
Packing:?Standard Fumigation Wooden
Descriptions:
Our K series bevel gear reducer of right angle gearmotors do not have any thermal restrictions because of optimum lubrication
compact and space-saving design low friction.
The K series bevel gear reducer of right angle gearmotors is the first product to prove equally good in
regard to efficiency and?versatility within a highly competitive context, both performance and price-wise.
We have test the K series of right angle gearmotors after 50,000 operating hours, the result showed that
the K series of right angle gearmotors do not reveal any noticeable wear.
Specification:
|
?????????? model |
37 |
47 |
57 |
67 |
77 |
87 |
|
Structure |
K,KA,KF,KAF,KAZ,KAT,KAB |
|||||
|
Input Power KW |
0.12~3 |
0.12~3 |
0.12~4 |
0.18~5.5 |
0.37~11 |
0.75~22 |
|
Transmission Ratio?? i |
4.09~106.6 |
4.66~131.7 |
4.68~143.5 |
7.1~646.2 |
7.11~192.7 |
7.42~195.2 |
|
Allowed Torque? Nm |
170 |
340 |
510 |
705 |
1320 |
2300 |
|
Weight?? kgs |
12 |
22 |
30 |
37 |
63 |
94 |
|
? ? ? ????? model |
97 |
107 |
127 |
157 |
167 |
187 |
|
Structure |
K,KA,KF,KAF,KAZ,KAT,KAB |
|||||
|
Input Power KW |
1.1~30 |
3~45 |
7.5~90 |
11~160 |
15~200 |
15~200 |
|
Transmission Ratio?? i |
8.88~176.5 |
8.72~147.2 |
8.6~144.4 |
12.7~151.1 |
17.3~161 |
17.1~180.7 |
|
Allowed Torque? Nm |
3670 |
6800 |
11050 |
15300 |
27200 |
42500 |
|
Weight?? kgs |
145 |
275 |
420 |
680 |
1130 |
