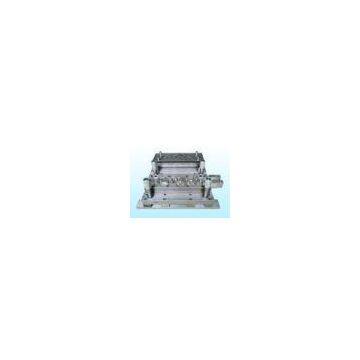

Drawing Dies / Progressive Stamping Die SKD11 For Telecommunication

Product?Name

progressive?dies,?transfer?dies,?station?dies,?drawing?dies?,FPC?punching?dies

Die?steel

AISI?D2/JIS?SKD11/?Din1.2379,?ASP-23,?SKH-9,etc

Stamping?Material?

Type

Carbon?steel,?hot-dipped?galvanized?steel,?SECC,?stainless?steel,?aluminum,?

brass,?copper,?plastic,?rubber,?FPC(flexible?printed?circuit)?etc.

Stamping?Material?Thickness

0.1mm-12mm

Precision

Tolerance??0.02~0.05?mm?

Lead?time

Depending?on?individual?products.?Normally?from?35?to?60?days?for?T1?sample

Quality?Assurance

ISO?certificated?factory,?Application?of?TS16949?

Surface?Finish

electroplating,?Powder?coating,?Conversion,?Passivation?,?Anodize,?Alodine,?

Electrophoresis,?etc.

Measuring?Instruments

3D?CMM,?Hardness?Meter,?Projector,?Digital?Height?,?Microscope?,etc.

Equipment

CNC?Machining?Center,?Sodick?EDM,?Fine?Precision?Grinding?Machine?,?

40T?to?600T?Press?Machines,?etc.

Design?Software

PRO/E,?Auto?CAD,?Solid?Work?,?UG?,?Master?CAM,?Auto?form

Applications

Automotive?(chassis?system,?seating?and?door?system,?audio?systems?,

cooling?system);

Home?Appliances?(TV?sets,?cameras,?air?conditioners?,DVD?players);

Telecommunication?(Antenna?base,?brackets,?enclosures?);?

Fire-fighting?equipment?(holding?plates);?

In-office?equipments?like?computers,?copiers?and?printers,?etc.?
