40 Ton Fit-up Tank Welding Turning Rolls For Wind Tower Production
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
300 Tons Anti-creep Tank Welding Turning rolls With ABB Inverter Control
-
HGK Motorized Lead-srew Welding Turning Rolls Pipe Roller 300 Tons
-
Adjusted Pipe Turning Rolls Vessel Rotator For Cylinder , Oil And Gas 20 Tons
-
100 Tons Self-aligning Pipe Tank Turning Rolls For Chemical Equipment
-
100 Tons Adjustable Anti-creep Pipe Turning Rolls Tank Roller Beds For Container
-
2000t Special Tank Turning Rolls Welding Rotators With ABB Inverter Control
Product Details
| Brand Name | Pyramid | Place of Origin | China | |
| Model Number | HGK-series |
Product Description
Certification:CE,ISO,TUV
40 Ton Fit-up Tank Welding Turning Rolls For Wind Tower Production
Quick Detail:
?
|
Name |
Products nickname |
Brand Name |
Control |
|
Fit-up Rotator/System |
Tank roller beds,vessel rotator,tank turning rolls Fit-up turning rolls |
Pyramid |
VFD. ABB inverter. Schneider |
|
Loading Capacity |
40tons-60tons |
Certificate |
CE,ISO |
?
Description:

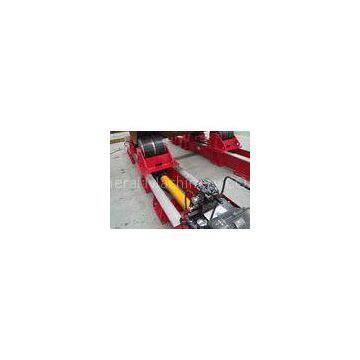

Fit-up roller has four independent fit-up rolls that perform lift up process, supported by hydraulic cylinders, which connects to hydraulic pump station. Combined with standard conventional power and idler roller, it can realize section to section assembly.
?
Applications:
Fit-up roller is mainly used in assembly of section to section pipe,such as in wind tower, or in vessel,tank application.
?
Specifications:
Technical datas:
?
|
Model |
Loading |
Suit dia |
Wheel size |
Power |
Rail dis |
|
HGKF-40 |
40 tons |
2-4.8m |
400X120mm |
3KW |
1200mm |
|
HGKF-60 |
60 tons |
2.5-5m |
520X250mm |
4.5KW |
1800mm |
?
?
?
Competitive Advantage:
Fit-up roller beds provide the unique features for the need of cone tank and vessel and wind tower industries.
Fit up principle ( instructions):
One section + one section fit up:
?
Can “A” travels distance of 600~1800 mm via travel car bogie. Power roller is driven by AC inverter to control the turning of Can “A” to match the offset line of the Can ”B”.
Can “B” travels distance of 250mm stroke via hydraulic cylinder, movement of the Can “A to Can
B” for gap alignment. Vertical stroke is 150mm via 4 hydraulic cylinders for high & low position.
Overall load capacity is at 40 tons and above is also available.
?
?
