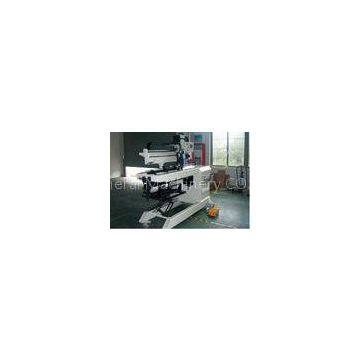

Cylindrical Workpiece Longitudinal Seam Welding Machine Equipment For Steel Plate
- T/T L/C D/P D/A
- 7 days
You May Like
-
Double Torches Automatic Circular Seam Welding Machine For Water Tank , Vessel
-
PLC Control Circular Seam Welding Machine For Oil Cylinder Port / Switch Pedestal
-
Flexible Horizontal Seam Automatic Tank Girth Welding Machine For Chemical , Kiln
-
Vertical Seam Automatic Tank Welding Machine For Shipyard VFD Control
-
80MM Up Roller Universal Electric 3 Roller Bending Machine For Petroleum
-
Horizontal Down Roller Adjust 3 Roller Bending Machine For Sheet Metal Become Round
Product Details
| Brand Name | Pyramid | Place of Origin | China | |
| Model Number | CNC series |
Product Description
Certification:CE,ISO,TUV
?Cylindrical Workpiece Longitudinal Seam Welding Machine Equipment For Steel Plate
Quick Detail:
Name:Longitudinal Seam Welding Machine
Brand Name: Pyramid
Type:Straight Seam Welding
Welding mode:Argon-arc welding,TIG with or without wire feeder,or CO2 gas-shield welding
Description:
This series of welding equipments are suitable for workpieces,of which the material are steel plate or stainless plate and galvanized steel.Welding seam should be smooth,flat and no obvious deformation existing.One side welding while two sides deformation.The same intension at both welding seam and the body itself.
Applications:
It is used for butt welding of cylindrical workpieces.
Specifications:
|
MODEL |
Welding Length |
Vessel Diameter Range(mm) |
Inside Seam Weld |
Outside Seam Weld |
Welding Speed(mm/min) |
Welding Thickness(mm) |
Travel accuracy(mm) |
Dimensions LxWxH(mm) |
|
Net(mm) |
Min-max(mm) |
|||||||
|
LSW 500 |
500 |
600-1200 |
1400-2400 |
130-180 |
150-1500 |
0.2-6 |
0.2 |
1350x660x1400 |
|
LSW 1000 |
1000 |
80-1200 |
1400-2400 |
150-180 |
150-1500 |
0.2-6 |
0.2 |
1700x660x1800 |
|
LSW 1500 |
1500 |
700-2200 |
1400-2400 |
180-1000 |
150-1500 |
0.4-6 |
0.2 |
2500x800x2100 |
|
LSW 2000 |
2000 |
750-2750 |
1400-2400 |
250-1000 |
150-1500 |
0.4-6 |
0.3 |
3100x900x2100 |
|
LSW 2500 |
2500 |
800-3300 |
1400-2400 |
300-1000 |
150-1500 |
0.5-6 |
0.3 |
3700x900x2200 |
|
LSW 3000 |
3000 |
1000-4000 |
1400-2400 |
340-1200 |
150-1500 |
0.5-6 |
0.3 |
4200x1000x2200 |
|
LSW 3500 |
3500 |
1000-4500 |
1400-2400 |
400-1200 |
150-1500 |
1-8 |
0.4 |
4800x1000x2200 |
|
LSW 4000 |
4000 |
1100-5100 |
1400-2400 |
450-1200 |
150-1500 |
1-8 |
0.4 |
