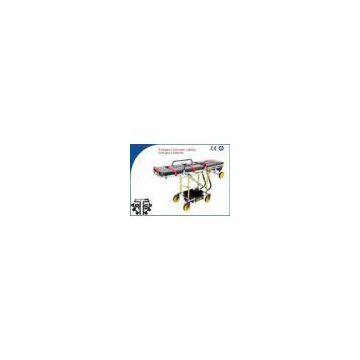

Automatic Loading Ambulance Stretcher Trolley , Patient Transport Stretcher

?
Foldable Ambulance Stretcher Automatic Loading for Patient Rescue
?

Quick Detail
?
Product Name:Foldable Ambulance Stretcher Automatic Loading????????????????????????????????????????????? Feature:Foldable,Automatic Loading,Foldaway
Material : Stainless steel
Maximum Back Angle: 75°
Carton Size (1pc/carton):199*62*40cm????????
Limited Loading: 159kg?????????????
N.W.: 38kg????? G.W.:44kg
Usage:Patients Rescue,Outdoor, First Aid,Emerency Rescue
?
?
Description
?
?

AST-JHD1514 Emergency Automatic Loading Ambulance Stretcher is the emergency rescue necessary product which produce by AST.The stretcher specialized in emergency rescuing and evacuating.Automatic loading ambulance stretcher can very easily transfer patients and wounded to ambulance.AST-JHD1514 is the best choice in emergency first aid.Automatic loading ambulance stretcher’s main frame used high-strength aluminum alloy as raw material.Overall dimension of automatic loading ambulance stretcher is 195X58X95cm.Raise degrees of backrest on stretcher between1-75 degree .Loading weight of foldable stretcher between 1-159kg, and net weight of stretcher only 38kg.

AST-JHD1514 Emergency Automatic Loading Ambulance Stretcher adopts foamed pad as the material of the backrest.The adjustable backrest will make the patients feel more comfortable.

AST-JHD1514 Emergency Automatic Loading Ambulance Stretcher installed very easy control parts.When transfer the patients to the ambulance stretcher just need one first aider.

The four legs of AST-JHD1514 stretcher have equipped with handles on the both ends of stretcher to control it.

Legs of stretcher can be folded under the stretcher automatically during the stretcher loading into ambulance.

AST-JHD1514 Emergency Automatic Loading Ambulance Stretcher can be fixed on ambulance by fixing device after loaded on ambulance.

AST-JHD1514 Emergency Automatic Loading Ambulance Stretcher can be controlled very easily.and the weight is very light.

AST-JHD1514 Emergency Automatic Loading Ambulance Stretcher mainly application is emergency rescue,outdoor evacuation and sportground rescue.

Feature
?
1) The frame is made of high-strength aluminum alloy.
2) Mainly used for emergency staff transferring the patient.
3) It has the characteristics of light weight,large load bearing,easy to fold and carry;
4) Waterproof leather material surface
5) Easy for use and sterilization
?
?
Application
?
?

1. Hospital patient movement

2. Sports ground rescue

3. Wilderness rescue

?
?
Technical parameters
?

?
?
Competitive advantage
?
? We don’t send parts out for pretreatment, all process would be supervised underinspection department
? 7 stages pretreatment meet international standard
? Baking at high temperature after power coating to ensurethe paint finish
? All bolts and screws are of SS material
? Mild steel ERW rectangular tubes or sheets 1.2-2.0mmthickness, meet EU standard
? Process inspections after cold working, acid washing,powder coating and assembling
Final inspection before loading in random checking
?

?
?????????
?
