Product Details
| Brand Name | MIROC | Place of Origin | China | |
| Model Number | 4148300581-4148300591 |
Product Description

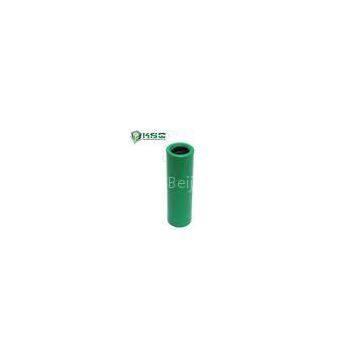

Tungsten carbide R32 Drill Coupling Crossover Coupling for Tunneling
Description
Crossover coupling using R32 thread system
? R32 thread system
? Widely used in drifting and tunneling
Color: Green or Based on Customer requirements
Material: Tungsten carbide and high strength alloy steel
Processing: CNC milling and proprietary heat treatment process
Type: R32 Crossover Coupling
?
Applications
? Underground Mining
? Tunneling
?
Competitive Advantage
High strength chromium-molybdenum steel with high fatigue strength and excellent wear resistance
?
specification
?
| Part?Number |
Product?Code?and?Brief? Description |
Length? (mm) |
Length? (inch) |
Diameter? (mm) |
Diameter? (inch) |
Thread |
Weight? (kg) |
| 4148300581 |
CS-R25/R32-150,?R25? Crossover?Coupling |
150 | 6???? | 45 | 1?7/9 | R25-R32 | 1.1 |
| 4148300582 |
CS-R25/R32-160,?R32? Crossover?Coupling |
160 | 6?2/7 | 45 | 1?7/9 | R25-R32 | 1.2 |
| 4148300583 |
CS-R28/R32-160,?R32? Crossover?Coupling |
160 | 6?2/7 | 45 | 1?7/9 | R28-R32 | 1.2 |
| 4148300584 |
CS-R28/R38-160,?R32? Crossover?Coupling |
160 | 6?2/7 | 55 | 2?1/6 | R28-R38 | 1.8 |
| 4148300585 |
CS-R28/R38-170,?R32? Crossover?Coupling |
170 | 6?2/3 | 55 | 2?1/6 | R28-R38 | 2.0 |
| 4148300586 |
CS-R28/R38-180,?R32? Crossover?Coupling |
180 | 7???? | 55 | 2?1/6 | R28-R38 | 2.2 |
| 4148300587 |
CS-R28/R38-210,?R32? Crossover?Coupling |
210 | 8?1/4 | 55 | 2?1/6 | R28-R38 | 2.8 |
| 4148300588 |
CS-R28/T38-170,?R32? Crossover?Coupling |
170 | 6?2/3 | 56 | 2?1/5 | R28-R38 | 2.1 |
| 4148300589 |
CS-R28/T38-180,?R32? Crossover?Coupling |
180 | 7???? | 56 | 2?1/5 | R28-R38 | 2.2 |
| 4148300590 |
CS-R28/T38-210,?R32? Crossover?Coupling |
210 | 8?1/4 | 56 | 2?1/5 | R28-R38 | 2.8 |
| 4148300591 |
CS-R28/T45-190,?R32? Crossover?Coupling |
190 | 7?1/2 | 63 | 2?1/2 | R28-R45 | 3.2 |
