Product Details
| Brand Name | MIROC | Place of Origin | China | |
| Model Number | 4148300271-4148300281 |
Product Description

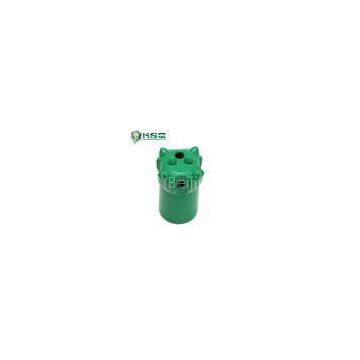

1.5 inch Tapered Button Drill Bit , 12 Degree 30mm 40mm Rock Drill Bits
Description
Tapered equipment affords drillers the ability to change drilling bits whilst still using the same drilling rod. Drillers choose tapered button bits for faster drilling penetration rate. Different taper sizes have different characteristics when it comes to the “knock-off” index – the smaller angle will prevent the bit from spinning.
?
? Suitable for small hole range
? Widely used in Dimensional Stone Quarrying Industry
? Widely used in Underground Mining Industry
Color: Green or Based on Customer requirements
Material: Tungsten carbide and high strength alloy steel
Processing: CNC milling and proprietary heat treatment process
Type: 12° Tapered Button Bit Long Skirt
?
Applications
? Dimensional Stone Industry
? Underground Mining
? Tunneling
?
Competitive Advantage
? High grade tungsten carbide inserts
? Bit bodies manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment
?
specification
?
| Part?Number | Bit?Diameter?(mm) | Bit?Diameter?(inch) |
Front?Buttons? (No.?x?mm) |
Gauge?Buttons? (No.?x?mm) |
| 4148300271 | 41 | 1?5/8 | 2x7 | 5x9 |
| 4148300272 | 32 | 1?1/4 | 2x7 | 5x7 |
| 4148300273 | 33 | 1?2/7 | 2x7 | 5x7 |
| 4148300274 | 33 | 1?2/7 | 2x7 | 6x7 |
| 4148300275 | 35 | 1?3/8 | 2x7 | 6x7 |
| 4148300276 | 38 | 1?1/2 | 2x7 | 5x9 |
| 4148300277 | 41 | 1?5/8 | 2x7 | 5x9 |
| 4148300278 | 35 | 1?3/8 | 2x7 | 5x9 |
| 4148300279 | 36 | 1?3/7 | 2x7 | 5x9 |
| 4148300280 | 38 | 1?1/2 | 2x7 | 5x9 |
| 4148300281 | 41 | 1?5/8 | 2x7 | 5x9 |
| Product?Code?and?Brief?Description | Angle |
Front?Flushing? Holes |
Side?Flushing? Holes |
Weight? (kg) |
| BL741-12D-22-1,?12°?Tapered?Button?Bit,?Long?Skirt | 35° | 1 | 1 | 0.41 |
| BL732-12D-22,?12°?Tapered?Button?Bit,?Long?Skirt | 35° | 1 | 1 | 0.3 |
| BL733-12D-22,?12°?Tapered?Button?Bit,?Long?Skirt | 35° | 1 | 1 | 0.31 |
| BL833-12D-22,?12°?Tapered?Button?Bit,?Long?Skirt | 40° | 2 | 1 | 0.31 |
| BL835-12D-22,?12°?Tapered?Button?Bit,?Long?Skirt | 40° | 2 | 1 | 0.35 |
| BL738-12D-22-1,?12°?Tapered?Button?Bit,?Long?Skirt | 35° | 1 | 1 | 0.41 |
| BL741-12D-22-2,?12°?Tapered?Button?Bit,?Long?Skirt | 35° | 1 | 1 | 0.42 |
| BL735-12D-22,?12°?Tapered?Button?Bit,?Long?Skirt | 35° | 1 | 1 | 0.38 |
| BL736-12D-22,?12°?Tapered?Button?Bit,?Long?Skirt | 35° | 1 | 1 | 0.39 |
| BL738-12D-22-2,?12°?Tapered?Button?Bit,?Long?Skirt | 35° | 1 | 1 | 0.41 |
