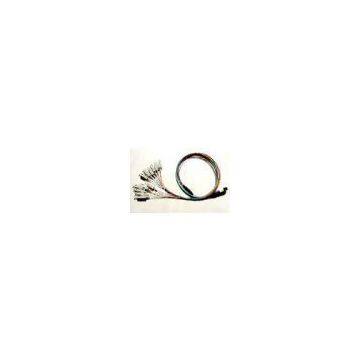

FTTX SC Fan Out Fiber Optic Patch Cord OM1 OM3 OS2 With High Return Loss

FTTX SC Fan Out Fiber Optic Patch Cord OM1 OM3 OS2 With High Return Loss

Quick Detail:

SC/UPC, SC/APC and SC/PC multi core fan out patch cords, in single mode 9/125 and multimode 50/125, 62.5/125: OS1, OS2, OM1, OM2, OM3,OM4 fibers are available, cable outer diameter can be 0.9mm, 1.6mm, 2.0mm, 2.4mm and 3.0mm. Fiber count could be 4,6,8,12,24,36,48…
?

Description:

ZZT provide a full range of patch cords, such as SC, SC/APC, LC, LC/APC, FC, FC/APC, ST, MT-RJ, MU, E2000, E2000/APC, MPO, DIN etc for both Single mode and Multimode, SX ,DX and Multi-core, The monthly production capacity is 900k, all products are designed and controlled under IEC standard, meet the requirement of Telcordia GR-326 and TIA/EIA as well.
?

Material:

Ferrule: Zirconia
Fibers: Corning, Draka, YOFC
Jacket: PVC, LSZH, OFNR, OFNP
Cable: Tight buffer, easy stripping tight buffer, loose tube
?

Applications:

Telecommunication network
CATV system
Local Area Network
Active/Passive device
FTTH and FTTX
?

Competitive Advantage:

Telcordia GR-326, IEC, TIA/EIA Standard compliant
100% Optical performance inspection and end-face geometric
Low Insertion Loss and high Return Loss
Varieties of Cable Assemblies
RoHS Compliance
?

Specifications:

Environmental and Mechanism
