Compact Tension Load Cells / Sensor Load Cell for Digital Amplifiers 100 kg - 500 kg
- T/T L/C D/P D/A
- 7 days
You May Like
-
Anodized Aluminum Alloy Amplifier Tensile Load Cell With High Precision 0.05kg - 50 Kg
-
Moisture Proof Miniature Strain Gauge Load Cell / Compact Single Load Cell for Tension Measurement
-
Cylindrical Tension Load Cells / Single Load Cell For Weighing Indicator 5 kg - 100 kg
-
High Precision Weigh Module Sensor for Hopper / Batch Weighing 50 Kg - 5 Ton
-
Alloy Steel Weighing Module with Single Ended Shear Beam Load Cell
-
Compact Digital Weigh Module with Load Cell for Tanks / Silo 500 kg - 5 Ton
Product Details
| Brand Name | Lascaux | Place of Origin | China | |
| Model Number | Tk |
Product Description
Waterproof Tension Load Cells / Sensor Load Cell for Digital Amplifiers 100 kg - 500 kg
Quick Detail:
Model: TK
Features:
Capacities(kg):100kg……500kg Resistance strain measurement methods High comprehensive precision, high stability Compact structure, durable in use Delicate structure, easy to install The rated output is 1.5mv/V(standard) Be matched with amplifiers, 0-10v or 4-20mA are available Alloy steel material On-line tension measurement accuratelyDescription:

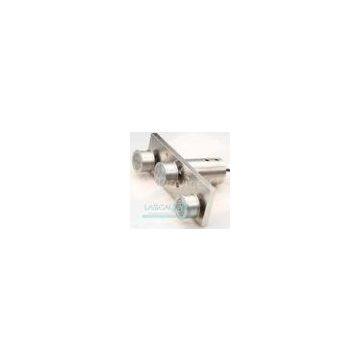

TK series are a kind of tension sensor, it is made of Alloy steel, The type adopt resistance strain measurement methods, high accuracy rotational, high stability, its structure is very compact, durable in use, because of its appearance, it is also called three roller type force sensor, it is mainly suitable for the measurement of yarn, fiber, wires and familiar produces.
TK series is available in the capacities 100kg to 500kg, very compact, delicate, and easy setup via an instrumented, single load cell can be matched with weighing indicator, converting what you want to, because the load cell itself output is mill volt(MV), it has to need an amplifier switch voltage or current.
TK series is suitable for on-line tension measurement, yarn, fiber, wires and similar products.
Applications:
Be suitable for on-line tension measurement, yarn, fiber, wires and familiar produces.
Specifications:
|
Rated Load |
kg |
100, 200, 300, 500 |
|
Rated Output |
mV/V |
1.5 |
|
Zero Balance |
%R.O. |
±1 |
|
Comprehensive Error |
%R.O. |
±0.3 |
|
Non-linearity |
%R.O. |
±0.1 |
|
Hysteresis |
%R.O. |
±0.1 |
|
Repeatability |
%R.O. |
±0.05 |
|
Compensated temp. Range |
?℃ |
-10...+40 |
|
Operating temp. Range |
?℃ |
-20...+70 |
|
Temp.effect/10℃ on span |
%R.O./10℃ |
±0.05 |
|
Temp.effect/10℃ on zero |
%R.O./10℃ |
±0.05 |
|
Recommended excitation voltage |
VDC |
5-12 |
|
Maximum excitation voltage |
VDC |
15 |
|
Input impedance |
Ω |
380±10 |
|
Output impedance |
Ω |
350±3 |
|
Insulation resistance |
MΩ |
>3000 |
|
Safe overload |
?%R.C. |
150 |
|
Ultimate overload |
?%R.C. |
300? |
|
Material |
Alloy steel |
|
|
Degree of protection |
IP65 |
|
|
Cable lengths |
m |
3 |
|
Connection |
Excitation |
red:＋ ? black:– |
|
Signal |
