Brand Name	Lascaux		Place of Origin	China
Model Number	DT70

Product Description

Delivery Time:6 working days

?
?

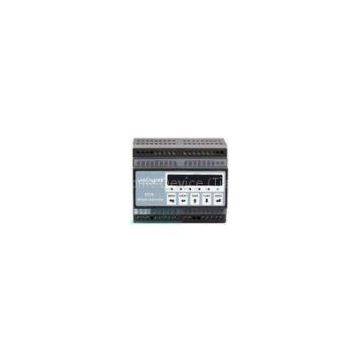

Black Digital Weighing Indicator with LED Display DC 24V , 4 ch Optical Isolating Switch
?
?
Quick Detail:
?
Features:
1. Lower temperature drift
2. 6-bit LED
3. Digital/material calibration optional
4. Compact body, DIN35 size housing
5. Key-press/host computer is optional to drive software
6. Up to 99 units can be interconnected by setting address
7. Analog output of 0-20 mA,4-20Ma,1-5V,0-10 V (four-alternative)
8. 4-ch optical isolating switch inputs could be respectively?used for conversion among tare, zero, net and gross
9. 4-ch relay isolating outputs could be respectively used for Hi-hi limit, Hi limit, Lo limit and?Lo-lo limit
?
?
Specifications:
?

Power Supply	DC 24V (18V~30V)
Display range	100~900,000
Output sensitivity	0.5μ/d~200μ/d
Range	8ppm/k of reading
Nonlinear deviation	0.005﹪of?F.S.
Sample rate	Max. 200 times/s
Sensor excitation	DC 10V±5﹪
Consumption power	Max. 10W
Humidity	90﹪relative humidity (no condensation)
Display division	1,2,5,10,20 or 50
Temperature coefficient	≤( 0.008﹪of the reading +0.3 division)/ ℃
Sampling method	Delta-sigma
Internal resolution	1/16,000,000
Max. display division	50,000d
Working	5℃~45℃(23°F~117°F)

?
?
Applications:
?
Specially fit for high-precision signal conversion of analog strain gage load cells, be used in the system controlled by PLC/PC, force and torque measuring, batching scale, platform scale, weighing level, and packing scale etc.
?
?
Competitive Advantage:
?

Lascaux Microelectronic Device is one of the professional companies that provide complete solutions on weighing,industrial measuring and other fields within the territory of china. With years of study and pursue on sensor productions, we strive to provide professional technology and guaranteed quality.
We have all kinds of products, for example, Load Cell, Force Sensors, S-Beam Load Cell, Single End ed Beam Load Cell, Single Point Load Cell, Compression Load Cell, Tension & Compression Spoke Load Cell, Weigh Modules, at the same time, we own other sensor appendixes.
Our accurate, reliable and professional products are applied to a variety of fields, which include Weighing Devices, Metallurgy, Petroleum, Chemical, Food Processing, Machinery Manufacture, Paper Making, Steel, Transport, Mine, Cement and Textile industries, etc.

?
Dimension:
?
