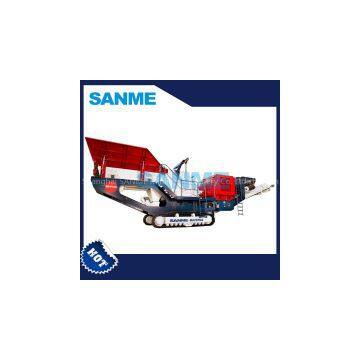

Asia MP-PH Series Mobile Impact Crushing Plants
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Place of Origin | China | |
| Model Number | MP-PH |
Product Description
SANME-HAZEMAG MP-PH Series Mobile Impact Crushing Plants is designed by HAZEMAG Germany, it is an all-purpose, compact and modular impact crushing plant for aggregates and recycling industries.
Innovative Features:
1.The vibration feeder is fitted with a two-deck grizzly section for an optimum pre-scaling, thus maximizing the total performance and reducing wear.
2.The material, which has already the required grain size, is conveyed via a bypass past the impact crusher directly to the discharge chute. Thus the efficiency of the complete plant is increased.
3.The MP-PH crushing plant is fitted with the field-tested HAZEMAG impact crusher AP-PH-A. The hydraulic controlled impact crusher guarantees a constant product quality and a high availability.
4.The active hydraulic permit a trouble free material flow via the movable inlet plate of the impact crusher.
5.The diesel-direct drive in combination with a CATERPILLAR motor allows for a maximum performance at a small amount of space.
6.The processing plant is easy to operate with the remote control.
7.Magnetic separator, lateral discharge belt and water spray system are optionally available as approved HAZEMAG modules.
8.For the optimization of performance and availability the mobile processing plant is operated by an intelligent control in the background.
Features:
1.The reliable processing plant MP-PH carries on the advanced HAZEMAG technology concept. It can be optimally used as a primary crushing plant, the optional high-performance magnet allows for an efficient employment in the recycling industry. The plant is eminently suitable for the processing of blasted natural stone and provides an excellent final grain size.
2.The MP-PH crushing plant impresses with a robust and functional design in a sturdy constructive form, and simultaneously can be operated economically.
3.Both the dynamic control system and the optimized crushing cavity geometry of MP-PH crushing plant ensure maximum throughput continuity and a homogenous final grain size.
4.SANME-HAZEMAG MP-PH Series Mobile Impactor Plant, the cost of which has been thoroughly optimized, convinces by its stability, wear cost which are considerably below average, long maintenance intervals and minimum set-up times.
5.SANME-HAZEMAG MP-PH Series Mobile Impactor Plant is one of the most economical impact crushers of its class; it is a truly world-class product.
All in all the SANME-HAZEMAG MP-PH Series Impactor Plants convince by a flexible applicability, it processes limestone, reinforced concrete, bricks and asphalt with the directly driven HAZEMAG impact crusher into high-quality final grain sizes. An excellent mobility, a high performance at a comparably low weight and an efficient drive permit a remarkable economic crushing.
