Home > Products > AC DC Power Adapter > 3 Pin Uk Plug CCTV AC DC Power Adapter , 12V 1A Transformer 3.5mm x 1.35mm

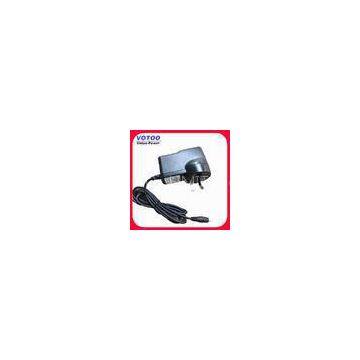

3 Pin Uk Plug CCTV AC DC Power Adapter , 12V 1A Transformer 3.5mm x 1.35mm
- T/T L/C D/P D/A
- 7 days
You May Like
-
24V 5A 120W DIN Rail Power Supply / AC To DC Switching Power Supply
-
5.5mm 2.5mm AC DC 12V 500ma Power Supply Adapter For Wireless Router / Hard Drive
-
110V - 240V AC To 12V DC 1A Transformer AC DC Power Adapter , LED Power Adaptor
-
US Plug Wall Mount 5V 1A Micro USB AC DC Power Adapter 110v To 220v
-
ODM 7.5 Watt 1500mA / 1.5A AC DC Power Right Angle Plug Adapter 5V
-
5V 2A DC 2.5mm EU Tablet PC Power Adapter For Electronic Scale / LED Light
Product Details
| Brand Name | VOTOO | Place of Origin | China | |
| Model Number | VP-1201000 |
Product Description
Certification:CE , RoHS
3 Pin Uk Plug? CCTV AC DC Power Adapter , 12V 1A Transformer 3.5mm x 1.35mm
Quick Detail:
Type: wall mount type Material:plastic materials Certificate: CE & RoHS Dc plug: 5.5*2.1mm,5.5*2.5mm,3.5*1.35mm, micro/mini usb etc. AC plug: EU,US,AUS,UK,CN etc. OEM/ODM welcomeFeatures:
o Output Voltage: 12V
o Output Current: 1000mA
o Power: 12Watt
o Ripple & Noise: 1% of Output Voltage
o Leakage Current: 0.25mA
o No load power Consumption
o Working Temperature:0-40°C Max
o Efficiency : 85%Min
o Universal Input 100~240VAC 50/60Hz
o Small volume, light weight, high efficiency.
o Cooling by free air convection.
o 100% Full load burn-in test.
o One year warranty.
o High Efficiency
o Short Circuit Protection
o Over Voltage Protection
o Over Current Protection
o Green Circuit Design
Weight: 90g
Dimensions: ?75 x 29x 43.0 mm
o Accurate information and descriptions.
o All orders are shipped on time.
o All items are fully inspected prior to shipping to meet international standards by our QC staffs.
o All items are with CE RoHS approval to ensure the products quality.
Specification:
|
OUTPUT |
DC VOLTAGE |
12V |
|
OUTPUT POWER |
12W |
|
|
CURRENT RANGE |
1000mA |
|
|
INPUT |
VOLTAGE RANGE |
110VAC -264V AC |
|
FREQUENCY RANGE |
50-60Hz |
|
|
EFFICIENCY(Typ.) |
85% |
|
|
ENVIRONMENT |
WORKING TEMP. |
-0°C ~ +40°C (Refer to output load derating curve) |
|
STORAGE TEMP.,HUMIDITY |
-10°C ~ +70°C 10~95% RH |
|
|
COOLING METHOD |
BY FREE AIR CONVECTION |
How to Install?
Connect power supply to the supplied unit. Power supply must be connected to a working electrical AC line with a voltage of 100-240V. Do not install power supply in locations with high humidity, dust or strong direct sunlight. The power supply should be installed in a location with good airflow. Power supply can only be installed indoors.Application:
1. CCTV security, door access, digital camera, etc.
2. POS machine, mini printing machine, etc.
3. Electronic scale, flowerpot etc.
4. LED strip, LED lighting etc.
