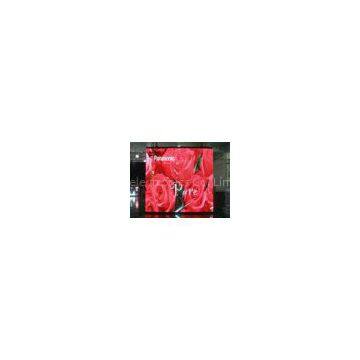

P6 Video Wall Indoor Full Color LED Display Panel , High Definition 192 * 96mm 2300cd/

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	TeehoLED		Place of Origin	China
Model Number	CE, 3C , RoHS, ISO,FCC,UL

Delivery Time:15-20days
Certification:CE, 3C , RoHS, ISO,FCC,UL

Quick Detail:

1.Super lighter and thinner;????

2. Easy connection and disassembling;???

3. Wide application, good for rental or fixed installation;?

4. High resolution and high frequency dynamic image.

P6 Video Wall Indoor Full Color LED Display Panel , High Definition 192 * 96mm 2300cd/ ㎡

Specifications:

Part Number	Teeho- P6-8S
Resolution	32(H)×16(V)
Pixel Pitch	6mm
LED Configuration	1R1G1B 3-IN-1 SMD
Pixel Density	27,777 pixels/ ㎡
Module Size	192*96mm
Driving IC	MBI5024
Driving Method	1/8 Scan, Constant Current
Screen Weight	42kg/sq.m.
Mechanical Ratings
Hanging Weight Support	2T
Surface Flatness	Gap<0.5mm
Optical Ratings
Brightness	2,300cd/ ㎡
View Angle	130°/120°
Gray Scale	8bits input, correction with 16 bits
Display COLOR	16.7M
Brightness Adjustment	0～100%
Power Supply
Operation Power	90～260V 50～60Hz
Max. Power Consumption	900W/ ㎡
Average Power Consumption	260W/ ㎡
Control System
Control Mode	Synchronous display with control PC by DVI
Frame Update Frequency	60～85Hz
Screen Refresh Frequency	300～1000Hz
Gamma Correction	-5.0～+5.0
Support Input	Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI
Control Distance	Ethernet cable<120m or Fiber Optic<10Km
Support VGA Mode	1024×768, 1280×1024, 1600×1200, 1920×1280
Brightness Correction	Pixel, Module, Cabinet
Environmental
Operating Temperature	-20°～+60°
Operating Humidity	10～95% RH
Operating Life	100,000hours
MTBF	5000hours
Protection Level	～
Out of Control Rate	<0.02%

Competitive Advantage:

1. Perfect?vivid?image／Super?brightness；

2. Support?any?format?of?video?etc；??
