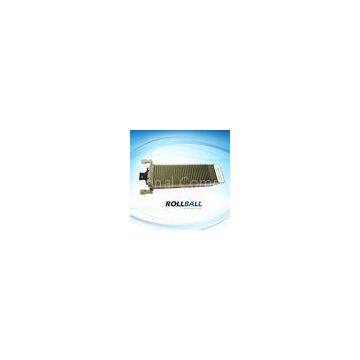

TRx 1310nm 10km Optical Transceiver XENPAK LR 10G Module With SC Duplex Connector

TRx?1310nm 10km?Optical Transceiver??XENPAK LR? 10G Module With SC Duplex Connector

Features

l?Compatible?with?XENPAK?MSA?Rev.3.0

l?Support?of?IEEE802.3ae?10GBASE-LR?

l?Transmission?Distance?up?to?10km(SMF)

l?Uncooled?directly?modulated?1310nm?DFB?Laser

l?Temperature?Range?0?to?70°C

l?Adaptable?Power?Supply?(APS:+1.2V)

l?SC?duplex?Optical?connector

l?Hot?pluggable?70-pin?connector?with?XAUI?electrical?interface

l?Management?and?control?via?MDIO?2-wire?interface

l?Compatible?with?RoHS

Applications

l?10GBASE-LR?10G?Ethernet

Product?Description

The?RXENPAK-31192-LRD?is?a?highly?integrated,Serial?optical?transponder?module?for?high-speed,?

10Gbit/s data?transmission?applications.?4×3.125Gbps?Ethernet?Signal?Input?by?XAUI?Interface.An?

integrated Coder?/?Decoder?and?multiplexer?/?demultiplexer?(SERDES:?Serializer?/?Deserializer).?Designing?

for?10GBASE-LR?Transmission?with?an?uncooled?directly?modulated?1310nm?DFB?Laser.?The?transponder?

operates?within?a?wide?case?temperature?range?of?0°C?to?+70°C?and?offers?optimum?heat?dissipation?and?

excellent?electromagnetic?shielding?which?enables?high?port?densities?for?10?GbE?systems.?A?70?pin?electrical

?connector?and?a?duplex?SC?connector?optical?interface?assure?that?connectivity?is?compliant?to?the?XENPAK?

MSA?Rev.3.0.

Specification:

Optical?Characteristics
