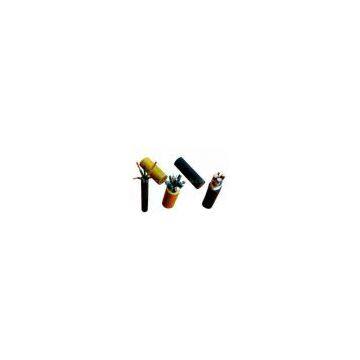

XLPE insulated Control Cable For Ship, Xlpe Power Cable for Control Systems of Ships
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
Electrician Copper Wire Blank For Electric Transmission Line Overhead ACSR
-
500KV COPPER XLPE INUSULATED POWER CABLE
-
High Strength Carbon Fiber Composite Core Compressed Aluminum Twisted Wire
-
High Strength Carbon Fiber Composite Core Compressed Aluminum Twisted Wire
-
Flexible Control Cables of Copper Conductor with Silicone Rubber Insulation -60 ~ 180
-
Copper conductor PVC / XLPE Insulated Copper Conductor Control Cable 450 / 750KV
Product Details
| Brand Name | New Baofeng | Place of Origin | China | |
Product Description
XLPE insulated Control Cable For Ship, Xlpe Power Cable for Control Systems of Ships
XLPE insulated Control Cable for Ship
■ Product standard
IEC 60092—350, IEC 60092—376, IEC 60332—3—22, IEC 61034, IEC 60754
■ Application
The cable is intended for control systems of ships, petrol platforms and offshore buildings, and it is also available to metallurgical industry, chemical works, power plant and mine etc…
1. Conductor
Tinned or plain copper wire
2. Insulation
XLPE
3. Inner covering
Tape
4. Screen/Armor
Tinned or plain copper wire braid
5. Outersheath
PO
*Product marking
?Manufacture’s name, type, spec., rated voltage, length, etc.
**Core identification
?Color or printed number
CKJ86/SC
1. Conductor
2. XLPE insulation
3. Tape
4. Tinned or plain copper wire braid
5. PO outer sheath
CKJPF86/SC CKJPJ85/SC
1. Conductor
2. XLPE insulation
3. Tape
4. PO inner sheath
5. Tinned or plain copper wire braid
6. PO outersheath
|
No.of cores×nominal cross-sectional area (mm2) |
CKJ86/SC |
CKJPF86/SC CKJPJ85/SC |
CKJPFP86/SC CKJPJP85/SC |
||||||
|
Calculated Diameter (mm) |
Calculated Mass (kg/km) |
Calculated diameter (mm) |
Calculated Mass (kg/km) |
Calculated diameter (mm) |
Calculated Mass (kg/km) |
||||
|
nom. |
Max. |
nom. |
Max. |
nom. |
Max. |
||||
|
2×0.75 |
7.7 |
8.6 |
80 |
9.3 |
10.5 |
105 |
10.5 |
12.0 |
136 |
|
3×0.75 |
8.0 |
9.0 |
93 |
9.6 |
11.0 |
119 |
10.9 |
12.0 |
158 |
|
4×0.75 |
8.6 |
9.6 |
109 |
10.2 |
11.5 |
136 |
11.8 |
13.0 |
190 |
|
5×0.75 |
9.4 |
10.5 |
128 |
10.8 |
12.0 |
154 |
12.8 |
14.0 |
221 |
|
7×0.75 |
10.0 |
11.5 |
154 |
11.6 |
13.0 |
186 |
14.1 |
15.5 |
299 |
|
8×0.75 |
