ism wireless
- 10000000 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Brand Name | New House Wireless | Place of Origin | China | |
| Model Number | NH-4432G |
Product Description
1. Description

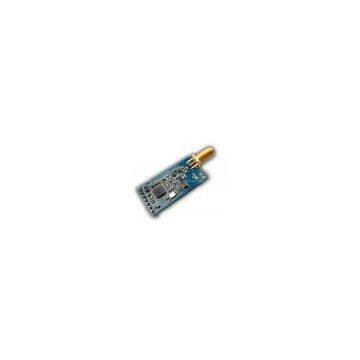

NH-4432G is a transmitting and receiving module which adopts a type of high integration wireless ISM chipset. Ultra low sensitivity (-121dBm/1200bps), the excellent output power +20dBm ensures a bigger area and chain performance. And the inside antennas and support of frequency hopping make the module more perfect.
2. Features
Frequency Range:433MHz Other bands defined by users
Sensitivity: -121dBm/1200bps
Maximum Output power: 20dBm 80mA@20dBm
Output power adjustable
Data transport rate: 1.2-250kbs
FSK,GFSK and OOK
1.8-3.6 V Power supply
Ultra low power consumption
Data package configurable
Receiving Signal Strength Index (RSSI)
Antennas match auto and Bi-switch control
Timing wakeup
Forward Synchronization signal detection
Voltage regulator integration
Frequency Hopping
Inner Crystal adjustable
64KB register (FIFO)
Under voltage detection
Temperature sensor
8-bit ADC
Working Temp: -20 ~ +85°C
Reset when power on
