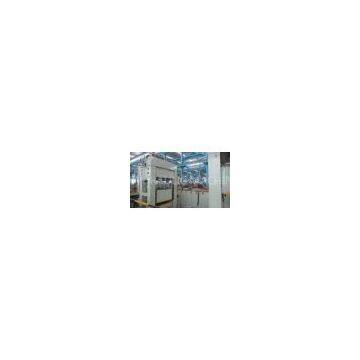

Stamping H-Frame Hydraulic Press For Industry Deep Drawing , 400 Ton

Brand Name	KLT		Place of Origin	China
Model Number	Y27-400A

Delivery Time:60-120 days
Certification:ISO 9001-2000,CE

Stamping H-Frame Hydraulic Press For Industry Deep Drawing , 400 Ton

Quick Detail:

H frame hydraulic press machine/ Table hydraulic press machine Four-angle and eight-side guide to keep high precision of press machine Deep drawing and stamping pressing adopt ejection cylinder and cushion Cold or heat hydraulic oil press machine Apply to industry of machine tool, power engine, axle, bearing, washing machine, plastic product, powder molding, electric and etc. Equip servo motor and CNC control system. Three operation model, manual, semi-auto and auto; equipped hands operation button and emergency stop button Big hydraulic press model 100 ton,160 ton,200 ton, 315 ton,400 ton,500 ton,630 ton, 800 ton,1000 ton,1250 ton,1600 ton and 2000 ton. Working speed, idle speed and return speed can be adjustable.

Description:

Y27 Series Frame-type Hydraulic Press is a kind of multifunctional precision machine which has high speed. Optimized design, the frame is entirely welded with steel plates, and treated to relive stress by tempering for high precision. Cartridge valve equipped for hydraulic control system, reliable, durable and less hydraulic shock, shorter connection pipeline and fewer release points. Centralized button control system, with adjustment, hand and semi-auto operation modes at operator’s choice (set-stroke single and set pressure single). Four-angle and eight-side guide rail in high precision and with strong capacity against deflection, concentrated lubrication. New type of oil cylinder sealing components marked by high reliability and long service life. Sliding blocks operating in high speed, ensuring high efficiency. The slide operating pressure, no-load quick travel and low-speed movement can be adjusted according to technological requirements. Hydraulic cushion is fitted beneath the worktable; adequate knockout hole and hydraulic cushion are prepared on the plate of worktable with the operating modes including drawing, ejection and no ejection. The working speed of this equipment is 3 to 4 times faster than that of Y41. It employs eight-side guide device and ejecting device, which can automatically eject workpieces with accurate guiding and fast speed. The drawing device can be added to this equipment in order to change moulds easily. But the stretching of large metal parts needs to add hydraulic cushion to this equipment.

Applications:

It is suitable for the press fitting and stretch forming of metal and plastic products as well as the movements of coining and overprinting. It mainly applies to the fields of machine tool, engineering machinery, bearings, washing machine, automobile parts, motor components and powder metallurgy. It is suitable for the molding of plastic products, such as DMC and BMC. The machine, with a high degree of automatization, is particularly suitable for the mass production of parts. And it can be used as assembly line with several such equipments.

Specifications:

Item	Unit	Y27-400A
Nominal Force	KN	2000+1000*2
Return Force	KN	240+165*2
Ram Stroke	mm	800
Daylight	mm	1200
Cushion Force	KN	1250
Cushion Return force	KN	360
Cushion Stroke	mm	300
Ram Speed	Idle Stroke	mm/s	180
Pressing	mm/s	9-20
Return	mm/s	130
