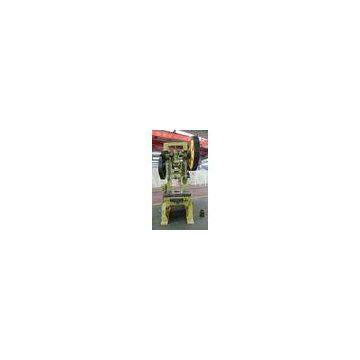

80ton Open Back Inclinable Hydrostatic Straightening And Mounting Press

Brand Name	KLT		Place of Origin	China
Model Number	JD21-80A

Delivery Time:15-30 days
Certification:ISO 9001-2000,CE

80ton Open Back Inclinable Hydrostatic Straightening And Mounting Press

Quick Detail:

Punching machine General open back press with fixed bed Power press machine equip with horizontally placed crankshaft Cold mechanical presses equip with pneumatic clutch slide Apply to shallow drawing/stamping working process Hydraulic straightening and mounting press machine Adopt hands operation buttons Apply for machine tool, steel material, plastic product, electric and etc. Punching machine equip with Mitsubishi PLC Punch machines model are 63ton,80 ton, 100 ton,125 ton, 160 ton.

Description:

Adopts horizontally placed crankshaft. Square figure long guide with six friction faces makes abrasion resistant and punching precision. Rigid rotated bond clutch. Manual shut height adjustment with scale display. The type with “A” equipped with emergency stop device, which could make the slide stop at 0°~135° area and equipped with light curtain protector as well. The type with “D” adopts dual rotated bond structure to overcome rebound of punching effectively. JC21-160 equipped with pneumatic clutch to make slide stop at any position. Hydraulic overload protector has sensitive response and reliable motion, which can protect the die when overloading. Combined pneumatic clutch and brake are made of friction material, which means long service life. Closed gear-driven, dipped in lube, which drives stably with low noise. Slide with counter balancer, which will eliminate the clearance and improve the stability and precision.

Applications:

J21 series presses are widely used in the fields of aeronautics, auto, agriculture machines, electric machines, apparatuses and meters, medical equipments, electrical home appliance and hardware.

Specifications:

Item	Unit	JD21-80A
Nominal Force	KN	800
Stroke under nominal force	mm	9
Slide block stroke	mm	130
Number of stroke	min-1	45
Max die set height	mm	320
Die set height adjustment	mm	100
Distance from slide block centre to the frame	mm	300
Worktable Dimensions(FB*LR)	mm	580*860
Dimensions of worktable hole	mm	φ200*45*180
Thickness of bolster	mm	100
Hole dimensions in bed(Diameter*FB*LR)	mm	φ280*220*380
Dimensions of slide block bottom surface(FB*LR)	mm	420*560
Size of the handle hole(Diameter*Depth)	mm	φ60*75
Distance between columns of body	mm	410
Motor Power	KW	7.5
Outline Dimension(FB*L*RH)	mm	1925*1470*2675

Competitive Advantage:

1. CE, ISO Certification.

2. We can supply KLT brand or OEM for clients.

3. We can supply product line solution according to clients’ requirements.

4. I
