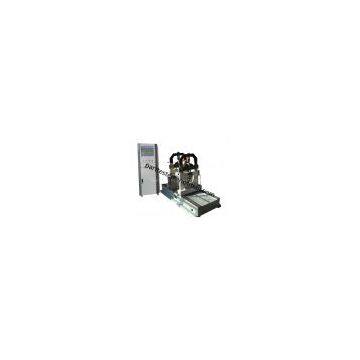

Wheel Hub Balancing Machine YYQ-500

YYQ-500 Belt Drive Hard Bearing Balancer/ Balancing Machine

Parameter
1.Maximum weight of workpiece: 10-500kg
2.Maximum diameter of workpiece: 1500mm
3.Distance between two bearing pedestals: 150-1500mm
4.Journal diameter on roller carriages: 20-120mm/ 120--240mm
5.Belt driving diameter: 40-500mm
6.Rotation speed when the diameter of operationg transmission is 230mm:300-2500min r/mm
7.Minimum achievable residual unbalance: Less than 0.5%
8.Unbalance reduction ratio: 90%
9.Motor power: 4kw
10.Speed regulation way: Frequency conversion speed regulation

Feature
1.Industrial computer control, 19 inch color screen display
2.Windows Chinese-English language available
3.GB-2000 software balance system
4.Automatically enlarged module
5.Calibration randomly, any angle clamping compensation and workpiece information storage
6.Display qualifying value, test cycle adjustable
7.Signal automatically enlarged or manually enlarged, signal and diagnostics self-calibration
8.Display vector graph, curve and unbalancing value at the same time
9.Choose and display residual unbalance value kg, g, mg and unbalance torque g.cm,g.mm freely

Optional function
1.Angle tracking function
2.Automatically stop when finish balancing workpiece
3.Automatically location function
4.Vector angle analysis function
