4-way ON-OFF Wireless Control Module, 433MHz Wireless I/O Module

4-way ON-OFF Wireless Control Module, 433MHz Wireless I/O Module:

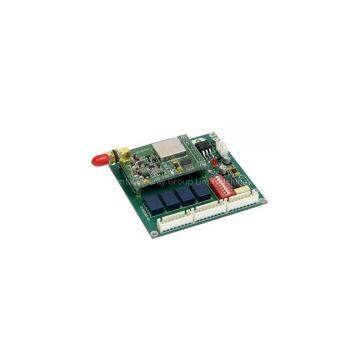

• HR-804 wireless on-off input and output module is a wireless transmission equipment with four 4-way DI and 4-way relay DO

• Function and feature:

• On-off input and output transmission timingly, use conveniently

• 4-way input with light separated, high reliability and stability

• 4-way relay on-off output

• 4-way output with 5V power supply

• Collocate wireless data transmission module with 2 - 3km, installing and using conveniently

• Power supply: 9 to 15V DC

• Size: 82 x 82mm

• Switch definition for dialing code:

• Choosing for the sending interval under the timing mode

• On slow (2s/time), off fast (1s/time)

• Choosing for principal and subordinate mode under the timing mode

• On subordinate equipment, off principal equipment

• DIP8: choosing for work mode on send for input changed, off send timing

• DIP7:

• DIP6:

• DIP5: no definition

• DIP4: fix as on

• DIP1-3: choosing the channels for the module (max for eight channels)

• Note:

• Under the timing mode, it will be one principal equipment and subordinate equipment

• After changing the position for the dialing code, the device need re-supply power then this changing will be in operation
