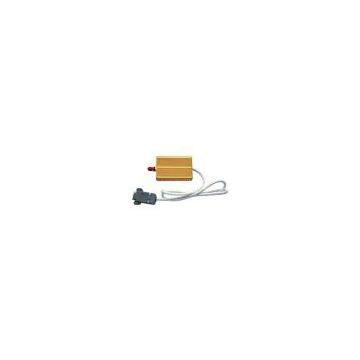

Wireless RF Transceiver Modules HR-1004
- T/T L/C D/P D/A
- 7 days
You May Like
-
Cost-effective USB interface Wireless RF transceiver module /good for connect PC Laptop
-
Radio module, Radio modem, Wireless RF Transceiver ModuleHR-1028
-
500mW DB9 tin RF Transceiver Module Radio Modem HR-1028A
-
5W/10W Power Radio Modem Wireless RF Transceiver HR-1030
-
433/868/915MHz RF Module USB Interface Short Ranges Data Transmission Module
-
Wireless Rf Module With 50mW Output Power, UHF Wireless Rf Transceiver Module HR-1021
Product Details
| Brand Name | HUARAY | Place of Origin | China | |
| Model Number | HR-1004 |
Product Description
Technical specification of HR-1004 RF Transceiver Module:
PERFORMANCE | |
Power Output: | 20dBm(≤100mW) <customized> |
RF Line-of-sight Range: | 600m@9600bps, 1000m@1200bps |
RF Effective Rate: | 1200~38400bps optional, 57600bps customized |
Receiver Sensitivity: | -120dBm@1200bps, -115dBm@9600bps |
NETWORKING | |
Networking Topology: | Point-to-point, point-to-multipoint |
POWER | |
Supply Voltage: | 5V DC(customized according requirement) |
Transmitting Current: | <40mA |
Receiving Current: | <20mA (TTL connect) |
Sleeping Current: | <20μA |
GENERAL | |
Frequency Band: | 433MHz(Default), 450MHz~915MHz(customized) |
Communication Mode: | Half-duplex |
Channel: | 8(Default), 16/32(customized) |
Interface: | RS-232/RS-485/USB/TTL optional |
PHYSICAL PROPERTIES | |
Size: | 47mm*26mm*10mm (without antenna port) |
Weight: | 52g |
Antenna Impedance: | 50Ω SMA (multiple antenna options available) |
Operating Temperature: | -35~+75 C |
Frequency Stability; | ±2.5ppm |
