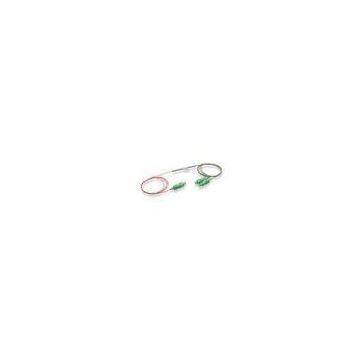

Mini Single window FBT Fiber Optic Splitter 1x2 with Steel Tube, 1310nm / 1550nm Wavelength

Quick Detail:

1. Singlemode fused (FBT) coupler with stainless steel tube

2. Single window 1310nm or 1550nm, dual window 1310/1550nm or triple window 1310/1490/1550nm available

3. 1:99 to 50:50 splitting ratio

3. LC, SC, ST, FC connector pre-terminated or not

4. Custom input/output length

5. Standard 0.9mm input/output fiber cable

Mini Single / Dual Window FBT Fiber Optic Splitter 1x2 with Steel Tube

Description:

Fused coupler is kind of passive component, which main function is to redistribute the input light power as required. Our fiber optic couplers employ Fused Biconical Tapered (FBT) technology and fully compliant with Telcordia GR-1209/1221 standards for network applications.

Fused couplers with stainless steel tube are available in both 1x2 and 2x2 port configurations. According to customer’s needs, SC, LC, FC, ST connectors could be pre-terminated at both input and output ends.

These fused couplers offer superior performance over an extended wavelength range of ±40nm at 1310nm and 1550nm.

Applications:

1. Telecommunications system

2. CATV networks

3. Local Access Network (LAN)

4. Fiber To The Home(FTTH)

Features:

1. Low excess loss

2. Good directivity

3. Low PDL

4. Good environmental stability

5. Standard or customized available

Specifications:

Ordering Guide:
