Single Mode MPO MTP Patch Cord Cable Assemblies With IEC-61754-7
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Brand Name | ZZT | Place of Origin | China | |
| Model Number | ZZTPC-MPO-SC |
Product Description
Certification:ROHS,UL

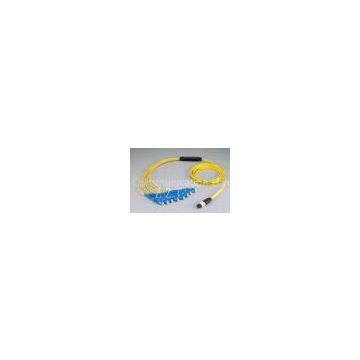

Single Mode MPO MTP Patch Cord Cable Assemblies With IEC-61754-7
Quick Detail:
MPO and MTP fiber optic patch cords and cable assemblies, with 8-core, 12-core, and 24-core, compatible for round cable or flat cable, Single mode and Multimode are available, male connector and female connector are available.
Description:
1. Meet IEC-61754-7 and TIA-604-5.
2. Rohs Compliance
3. 8-24 fiber available
4. Small volume, easy management.
5. Can customize connection method as QSFP reequipments.
Optical Performance
|
SM |
MM |
|||||
|
1310nm/1550nm |
850nm |
|||||
|
PC |
APC |
OM1 |
OM2 |
OM3 |
||
|
Insertion loss |
≤0.5dB |
≤0.5dB |
≤0.5dB |
|||
|
Return loss |
≥50dB |
≥55dB |
≥30dB |
|||
|
Durability |
500times, ≤0.5dB |
|||||
|
Working Tem. |
-40℃ to +85℃ |
|||||
|
Storage Tem. |
-40℃ to +85℃ |
|||||
| ? | ? | ? | ? | ? | ? | ? |
Geometry Inspection
|
Specifications |
Min. value |
Max. Value |
|||
|
Radius of curve |
long axis |
1000nm |
∞ |
||
|
short axis |
50mm |
∞ |
|||
|
Angle |
long axis |
-0.3° |
0.3° |
||
|
short axis APC |
7.7° |
8.3° |
|||
|
short axis PC |
-0.3° |
0.3° |
|||
|
Fiber height |
1000nm |
5000nm |
|||
|
D-Value of fiber height |
N/A |
800nm |
|||
|
Neighboring D-value of fiber height |
N/A |
500nm |
|||
|
Ferrule length |
7.8mm |
N/A |
|||
| ? | ? | ? | ? | ? | ? |
Polish Test
|
diameter ( um) |
|||
|
Region |
Size |
Defects |
|
|
A |
0um～25um |
No any dirty, scratch or other defects. |
|
|
B |
