Home > Products > Stainless Steel Pigtail > 0.9mm Cable Stainless Steel Pigtail To Join Stainless Steel Tube

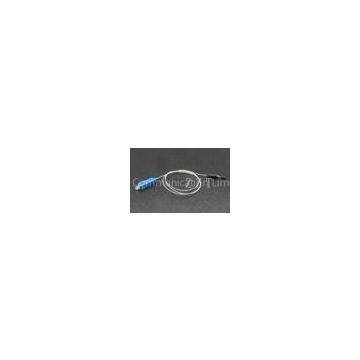

0.9mm Cable Stainless Steel Pigtail To Join Stainless Steel Tube
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
High Precise E-PON Stainless Steel Pigtail Zirconia , Patch Cords
-
Patch Cords Stainless Steel Pigtail
-
SM SX Stainless Steel Pigtail SUS-304 , Laser Semiconductor Pigtail
-
Single Mode Stainless Steel Pigtail
-
8.8 Stainless Steel Pigtail
-
Single Mode SUS-304 Stainless Steel Pigtail Patch Cords For CATV Detector
Product Details
| Brand Name | ZZT | Place of Origin | China | |
| Model Number | NON-STANDARD 6? |
Product Description
Certification:ROHS,UL
0.9mm Cable Stainless Steel Pigtail To Join Stainless Steel Tube
Quick Detail:
The Non-Standard stainless steel ceramic pigtail/ patch cords are made of SUS-304 steel and zirconia, there are 8?, 8.8?, 6? or customized.
Description:
ZZT Non-standard stainless steel ceramic patch cord series are widely used in laser semiconductor, E-PON device etc. Being made of SUS-304 steel, the non-standard stainless steel ceramic end is automatically processed under high precise control by CNC machines, the ceramic ferrule match with stainless steel base is also produced through precise processing technic. According to production flow for fiber steel ceramic patch cord is finally processed.
Applications:
1. Laser semiconductor pigtail
2. E-PON device, passive and active components
3. CATV detector
Competitive Advantage:
1. Customized product.
2. Able to join stainless steel tube
3. Rohs Compliant
4. Meet GR-468-CORE
Performance
|
Specification |
As required drawing |
|
Mode |
Single mode |
|
Insertion Loss |
≤0.2dB,@1310nm &1490nm &1550nm |
|
Return Loss |
≥50dB |
|
Working Tem. |
?-25℃ to +70℃ |
|
Storage Tem. |
?-40℃ to +80℃ |
Geometry Inspection
|
Radius of curve |
5-15mm |
|
Fiber height |
-100nm to +50nm |
|
Apex offset |
0～50um |
Order information
|
End A |
Non-standard stainless steel ceramic connector,???? 6?,8.8°,8°, or customized. |
|
End B |
SC,ST,FC,LC,MU (UPC,APC) |
|
Cable |
SM SX 0.9mm |
|
Boot |
0.9mm |
