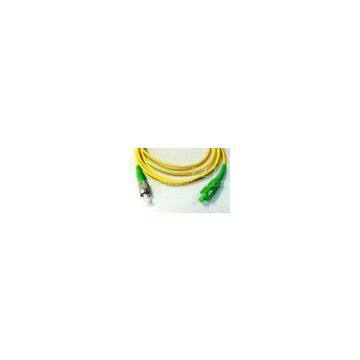

FC / APC Single Mode Fiber Optic Patch Cords / Fiber Optic Jumpers

FC / APC Single Mode Fiber Optic Patch Cords / Fiber Optic Jumpers

Quick Detail:

FC/UPC, FC/PC and FC/APC fiber optic patch cords , in single mode OS1, OS2, G652D, G657A, G657B and G655 fibers are available, cable outer diameter can be 0.9mm, 1.6mm, 2.0mm, 2.4mm and 3.0mm, in SX, DX or Multi-core patch cords.


Description:

ZZT provide a full range of patch cords, such as SC, SC/APC, LC, LC/APC, FC, FC/APC, ST, MT-RJ, MU, E2000, E2000/APC, MPO, DIN etc for both Single mode and Multimode, SX ,DX and Multi-core, The monthly production capacity is 900k, all products are designed and controlled under IEC standard, meet the requirement of Telcordia GR-326 and TIA/EIA as well.


Material:

Ferrule: Zirconia
Fibers: Corning, Draka, YOFC
Jacket: PVC, LSZH, OFNR, OFNP
Cable: Tight buffer, easy stripping tight buffer, loose tube


Applications:

Telecommunication network
CATV system
Local Area Network
Active/Passive device
FTTH and FTTX


Competitive Advantage:

Telcordia GR-326, IEC, TIA/EIA Standard compliant
100% Optical performance inspection and end-face geometric
Low Insertion Loss and high Return Loss
Varieties of Cable Assemblies
RoHS Compliance


Specifications:

Environmental and Mechanism
