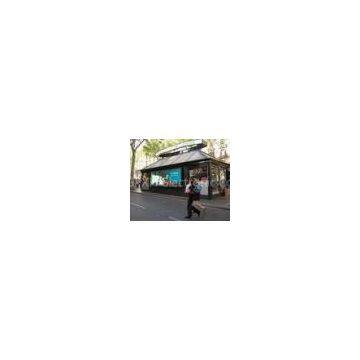

High Gray Scale outdoor full color outdoor led screen , led curtain display

Technical Specification

Pixel

Pixel pitch:? 16mm

Pixel configuration: 2R1G1B

Brightness:?? Red: 1000mcd?? Green: 2300mcd?? Blue: 600mcd???????????

Wave length:? Red: 625±2nm? Green: 525±2nm? Blue: 470±2nm

Module resolution:? 16×8 pixels

Module

Module size:? 256mmx128mm

Cabinet size:? 1024mm×768mm×150mm

Cabinet

Cabinet resolution: 3072 pixels

Cabinet material: Steel

Gross weight: 55kg

Module?quantity:?32pcs=?4(w)?x?8(h)

Power consumption?: Max.:1000W/m2??? Everage: 600W/m2

Screen parameter

Drive method: static

Brightness: 8000cd/m2

IC driver: MBI 5026

Density: 3906 pixel/m2

Whole?display?flatness:?≤?1mm?juncture

Best?view?distance:?≥?16m?

Viewing angle:? Horizontal:?? 120°?????? Vertical:? 60°

Humidity(RH):?≤?90~95%

Working temperature: from -30°C to +60°C

Working voltage: AC220V/110V±10%

Refresh?frequency:? 2400Hz(Zdec)? ≥?300Hz(Linsn)

Frame?rate:?≥?60Hz

Protection?grade:?IP64

MTBF: More than 10000hrs

Life time: 100,000 hrs

Control system

Control system: Linsn

Signal interface: DVI

Communication?distance:?Internet?cable:?≤120m?/?Fiber?cable:?1000m

Systems operating platforms?: XP,WINDOWS(WIN95,WIN98,WIN2000)
