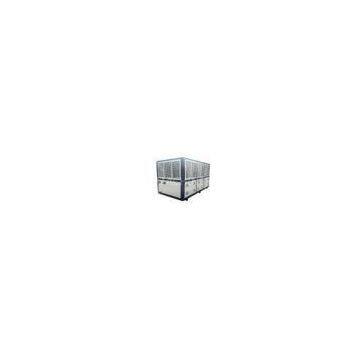

Highly Efficient Industrial Water Cooled Chiller with Stainless Steel Water Tank

FOB Price

Negotiable / Set

1 Set(Min.Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	AODE		Place of Origin	China
Model Number	AC-08W

Product Description

Delivery Time:Within 20days after receiving deposit
Certification:CE|ISO

Highly Efficient Industrial Water Cooled Chiller with Stainless Steel Water Tank

Quick Detail:

1. High/Low pressure protection for the compressor and overheating protection inside the machine

2. Low water level alarm and low water temperature alarm

3. Certification:CE & ISO

4. Compressor type: Totally closed vortex type or piston type

5. Refrigerating capacity: 27370Kcal/h(50HZ)

6. Warranty:1 year

Description:

High/low pressure protection for the compressor and overheating protection inside the machine Low water level alarm and low water temperature alarm Imported compressor from Europe, US and Japan Refrigerating system welded with oxygen free method, to reduce oxides and ensure the smooth surface Throttle components from Danfoss (Denmark) and Alco (US) SUS304 stainless steel water tank, to avoid corrosion or water leak Stainless plate, coil, shell and tube or fin type efficient heat exchanger RS485 communication function, to realize automatic management(optional) Electrical devices supplied from OMRON, FUJI, TE, LG, MOELLER and SCHNEIDER Control mode: imported micro-computer or PLC(optional) Perfect safety protection, failure display, and not requiring professional personnel for maintenance Highly efficient evaporator and condenser, to save over 30% energy 2 compressor heads for over AC-08, for individual or joint operation

Specifications:

ITEM	UNIT	AC-08WD
Cooling capacity	KW50HZ	24.85
	Kcal/h 50HZ	21375
Total input	KW	6.8
Maximum Running Current	A	16.5
Power supply		3N-380V 50HZ
Refrigerant	Name	R22
	Charge	Kg	2.2×2
	Control Type	Capillary Tube
Compressor	Type		Hermetic scroll or piston
	Power	Kw	3×2
Cooling water	Flow	M3/h	5.34
	In/Out Pipe Size	G1-1/2”
Chilled water	Flow	M3/h	4.27
	Tank	M3	???????????????????? 0.11
	In/Out Pipe Size	G1-1/2”
water Pump	Power	Kw	0.75
	Pressure	Kpa	290
Size(L×W×H)	mm	1300×610×1445
Weight	Kg	210

Competitive Advantage:
