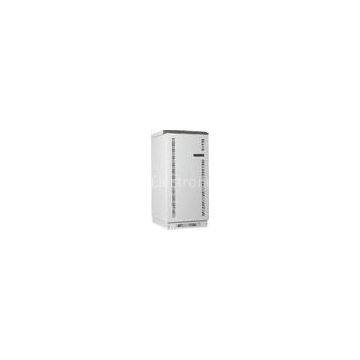

Three phase low frequency online ups( 10KVA - 120KVA) with N+X parallel redundancy for Instrumentati
Negotiable
/ Kilogram
1 Kilogram(Min.Order)
- T/T L/C D/P D/A
- 7 days
You May Like
-
IGBT and SPWM 30kva 40kva 3phase input and output low frequency online ups DSP control
-
10kva low frequency online ups with lcd display , SNMP slot , RS232 interface 304V AC - 478V AC
-
3KVA Low frequency online ups , ups with Maintenance free lead-acid battery for medical equipment
-
380V / 400V / 415V 3 phase low frequency online ups with RS232 / RS485 Communication
-
Single Phase Low frequency online ups with transformer security system , 12v lead acid battery
-
Pure sine wave low frequency online ups 5kw / 4kwatt supply with transformer 180 x 500 x 540
Product Details
| Brand Name | Jendia/OEM | Place of Origin | China | |
| Model Number | 3 phase low frequency online ups(10-80KVA) |
Product Description
Certification:CE,ISO9001
Three phase low frequency online ups( 10KVA - 120KVA) with N+X parallel redundancy for Instrumentation
?
Specifications
Low frequency UPS (100KVA-160KVA)
with isolated transformer inside
Sinewave ups Battery 384VD
True online double conversion
with isolated transformer inside
Sinewave ups Battery 384VD
True online double conversion
| EH9115-3/3L | 10K | 20K | 30K | 40K | 60K | 80K | 100K | 120K | 150K | 200K | 250K | 300K | 400K |
|
capacity (KVA) |
10KVA | 20KVA | 30KVA | 40KVA | 60KVA | 80KVA | 100KVA | 120KVA | 150KVA | 200KVA | 250KVA | 300KVA | 400KVA |
| Working | Pure sine wave online | ||||||||||||
| Phase | 3phase+N+G | ||||||||||||
| Input power factor | >0.9 | ||||||||||||
| Rectifier | Voltage | 415VAC | |||||||||||
| Range | ±25% | ||||||||||||
| Frequency | 50±10% | ||||||||||||
| Input harmonic current | 6 pulse rectifier <30%???? 12-pulse rectifier plus filter <5% | ||||||||||||
| Output ripple | <2% | ||||||||||||
| Soft Start | 0~100%?? 5sec | ||||||||||||
| Charge | Charge mode | ? | |||||||||||
| Float voltage | 432VDC | ||||||||||||
| Boost voltage | 464VDC | ||||||||||||
| Temperature compensation voltage | 3mV/1 pcs | ||||||||||||
| Charge current | 0.1C(automatically change follow the batteries) | ||||||||||||
| Charging power | 20% of Rated capacity | ||||||||||||
| Battery | Battery Type | maintenance-free lead acid battery | |||||||||||
| Battery capacity | 7-999AH settable(according to the capacity) | ||||||||||||
| Battery sessions | 32pcs 12V | ||||||||||||
| Inverter | Phase | 3 phase +N | |||||||||||
| Rated power | Rated capacity*0.8 | ||||||||||||
| Nominal voltage | 415VAC | ||||||||||||
| Output voltage stability | ±1%(Stable load),±3%(fluctuant load) | ||||||||||||
| Frequency stability | 50Hz±0.5% | ||||||||||||
| Crest Factor | >3:1 | ||||||||||||
| Output waveform distortion | Sine wave ,linear load<3%;non-linear load<5% | ||||||||||||
| Dynamic characteristic | Instant voltage | ||||||||||||
| Unbalanced load voltage | <±5% | ||||||||||||
| Overload Protection | 125%10m;150%1S;200%200ms | ||||||||||||
| Inverter efficiency | >95%(full load) | ||||||||||||
| Bypass | Phase | 3 phase +N | |||||||||||
| Nominal input voltage | 415VAC | ||||||||||||
| Nominal output voltage | 415VAC | ||||||||||||
| Conversion time | <1ms(static switch with 0 transfer time) | ||||||||||||
| Protection | Input protection | Input voltage/frequency over limited ;wrong phase;lack phase | |||||||||||
| Output Protection |
