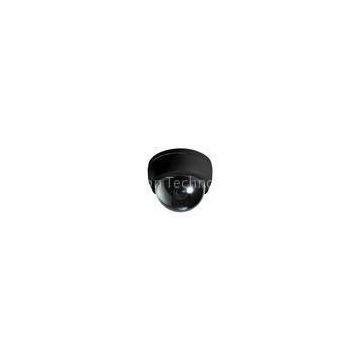

Mini Pelco-D / Pelco-P PTZ CCTV Camera Long Distance For Kindergartens

FOB Price

Negotiable / Pair

1 Pair(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name

Hans

Place of Origin

China

Delivery Time:7-15 working days
Certification:CE , RoHS , OEM

Mini Pelco-D / Pelco-P PTZ CCTV Camera Long Distance For Kindergartens

Specifications:

?Mini PTZ CCTV Camera

1.10x Optical ,10x Digital Zoom
2.128 presets,500TVL(C) 570TVL(B/W)
3.Tilt range:180 degree

?

Features:

1.?1/4\" Interline Transfer CCD

2.?Auto Day/Night, color/B/W function ,Dual IR filter switch(IR Cut function)

3.?100x10x Optical zoom,10x Digital Zoom

4.Horizontal RES500TVL (Color),570TVL(B/W)

5.?Min Illumination:Color 0.7Lux/F1.850 IRE

?????????????????????????? B/W 0.02Lux/F1.850 IRE

6.128 Preset

7.Privacy Zone4 Privacy Zone

8.Preset SpeedMax 360°/sec

9.Rotation Range:Pan 360 degree rotating

???????????????????????? Tilt 180 degree rotatingAuto-Flip

10.Manual Speed0.5° ~360°/Sec(proportional to zoom)

11.8 Cruise Group(20 action entities per Group)

12.RS-485 Long-distance control Pelco-D,Pelco-P protocol

Technical Parameters:

Scan	PAL? 21 Interleaved	NTSC? 21 Interleaved
Imaging device	1/4Interline Transfer CCD
Effective pixels	752(H) x 582(V)	768(H) x 494(V)
Scan Frequency	H: 15.625 KHz/V : 50.00 Hz	H:15.734 KHz/V:59.94 Hz
Horizontal RES	500TVL (Color),570TVL(B/W)
Video Output	Composite Image Signal 1.0Vp-p(75 OHM,BNC)
S/N Ratio	50 dB (AGC OFF,Weight ON)
Day/Night	ICR IR filters
Min Illumination	Color 0.7Lux/F1.850 IRE,B/W 0.02Lux/F1.850 IRE
Privacy Zone	4 Zone
White Balance	Auto/Manual(red, blue Gain Adjustable)
BLC	Low/Middle/High/Off
Focus Length	f=3.8 to 38mmF? 1.8 to 3.2
Manual Speed	0.5° ~360°/Sec(proportional to zoom)
Preset Speed	Max 360°/sec
Rotation Range	Pan 360 degree rotating,Tilt 180 degree rotatingAuto-Flip
Zoom	100x? 10x Optical zoom,10x Digital Zoom
Preset	128
Pattern	4 pattern
Swing	8 swing
Group	8 Group(20 action entities per Group)
Communication	RS-485Pelco-D, Pelco-P
Screen Display	English Menu
Alarm Input(Optional)	4 input
