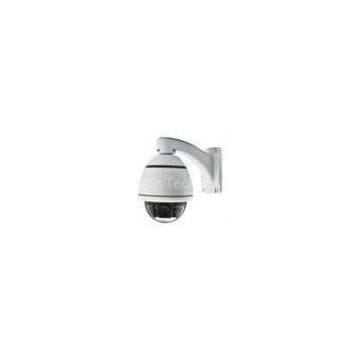

PTZ RS485 High Speed Dome CCTV Cameras Color to B/W With IR-CUT

Signal Model

PAL/NTSC

Horizontal Resolution

650TVL

Effective PiXel

PAL:976(H)X582(V) NTSC; 976(H)*494(V)

Minimum Illumination

0LUX,Color to B/W,IR sensor,IR-CUT

S/N Radio

≥ 60dB(enhanced)

Backlight Compensation

on/off

White Balance

Auto

Electronic Shutter

1/50~1/12000s

Focus Length

3.2~86.4mm

Optical Focus

27X/30X

Focus

Auto/manual,take high-performance DSP to realise complete digital and ultra-high speed focus function

Presets

256

Patrol Track

4groups,each can record 200 actions

Cruise Track

8 groups, total 30 presets can join cruise,can setting the presets\' residence time

Other Scan

4 groups ,support horizontal scan ,deuce area scan ,scan rendom

Rotation Range

horizontal 360°unlimted rotation,vertical 180°,auto reversal

Rotation Speed

horizontal & vetical min 0.01,max 200/s

Communications

RS-485,PELCO D,PELCO P

OSD.

Full-screen chinese/english menu

Special function

AWB,MASK,DNR,Strong light Optimaizer,MIRROR

Temperature

Built-in

Power Supply

AC24V/3A

Mater

Aluminum shell,waterproof IP66

Work Environment

-20.~+50 (select temperture control accessories),less than 95%RH
